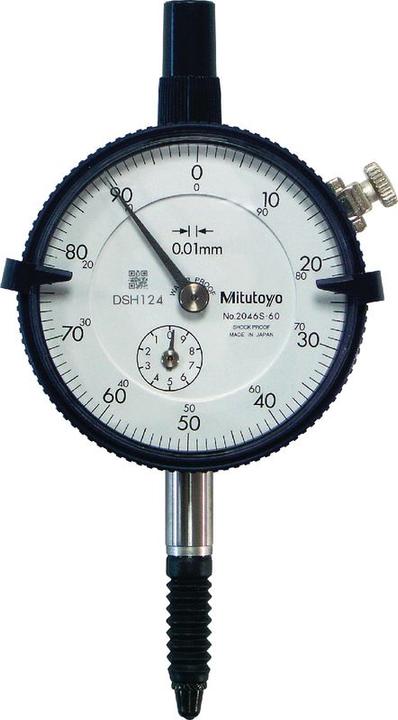

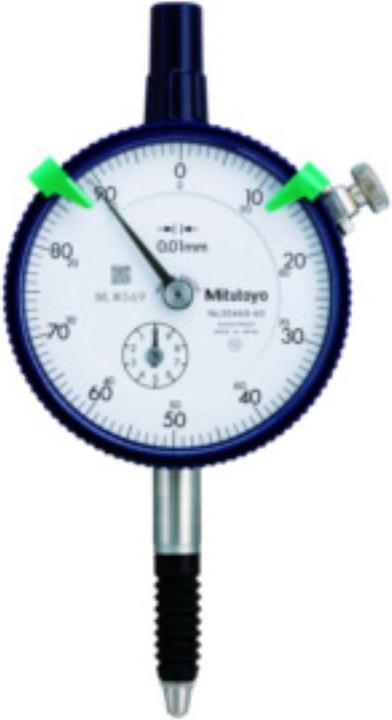

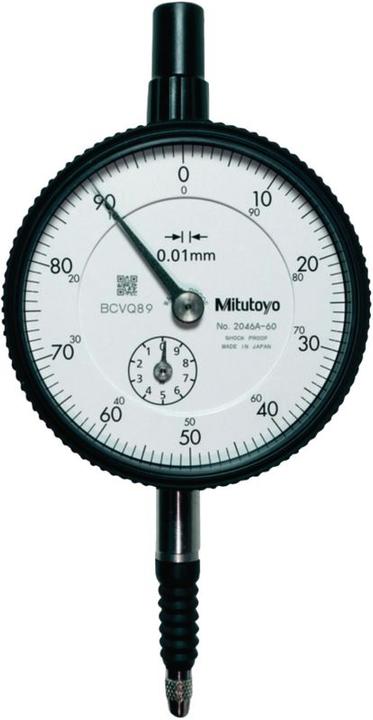

Mitutoyo Dial gauge
Delivered the day after tomorrow
Only 4 pieces in stock at third-party supplier
Only 4 pieces in stock at third-party supplier
Supplied by
free shipping
Measuring spindle diameter2
Product details
Dial gauge series 2 flat end cap. Application: For measuring lengths and length differences, such as run-out, flatness, and position measurements. Design: Carbide-tipped, thread M 2.5 x 0.45 mm. Locking screw and lift lever (optional) can be mounted on either the right or left side. Advantage: The design without through holes, a secure bond between the outer ring and the glass, and the use of an O-ring prevent liquids from entering. Delivery: Supplied with factory calibration certificate.
Resolution | 0.01 mm |
Accuracy | 0.02 mm |
Measuring spindle diameter | 10 mm |
Item number | 10004631 |
Manufacturer | Mitutoyo |
Category | Dial gauge + micrometer |
Manufacturer no. | 2046SB-60 |
Release date | 25.10.2018 |
Material | Hard metal |
Measuring force | 5 N |
Resolution | 0.01 mm |
Accuracy | 0.02 mm |
Measuring spindle diameter | 10 mm |
Protection type (IP code) | IP64 |
CO₂ emissions | 6.97 kg |
Climate contribution | CHF 0.16 |
Scope of delivery | Supplied in transport packaging incl. test report. |
Length | 17.70 mm |
Width | 69.50 mm |
Height | 52 mm |
Weight | 137 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
1 additional offer
