Metz Connect Metz 11088013 BMT-TO4 BACnet MS/TP 4DO
Heating actuatorDelivered between 28.2.2026 and 14.3.2026
free shipping
Product details

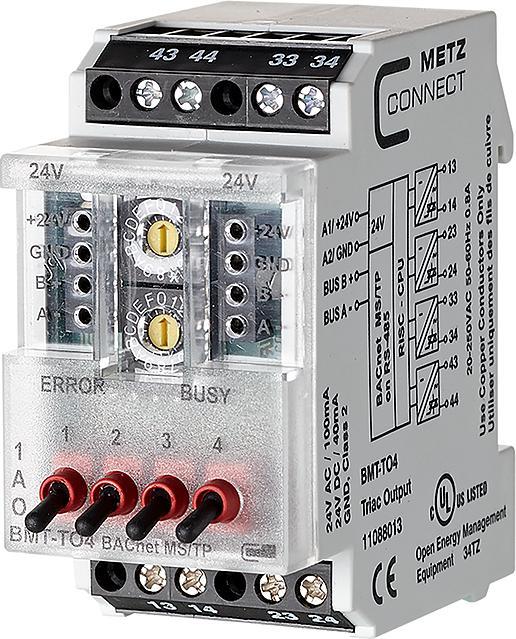

The BACnet MS/TP module with 4 digital Triac outputs is designed for decentralized switching tasks. It is suitable for switching electrical components such as relays, contactors, HVAC valves, etc. The outputs can be controlled via standard objects through a BACnet client. Additionally, the outputs can be manually overridden using switches on the device. The addressing of the module and the setting of the bitrate are done via two address switches on the front panel. It is suitable for decentralized mounting on TH35 mounting rails according to IEC 60715 in electrical distribution boards. Connection is made with screw terminals.
Actuator type | Heating actuator |
Mounting type | Top-hat rail |
Items per sales unit | 1x |
Operating voltage | 24 V |
Item number | 36139361 |
Manufacturer | Metz Connect |
Category | Actuator |
Manufacturer no. | 11088013 |
Release date | 8.6.2023 |
Actuator type | Heating actuator |
Max. Switching capacity | 800 W |
Operating voltage | 24 V |
Number of switching outputs | 4x |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1x |
