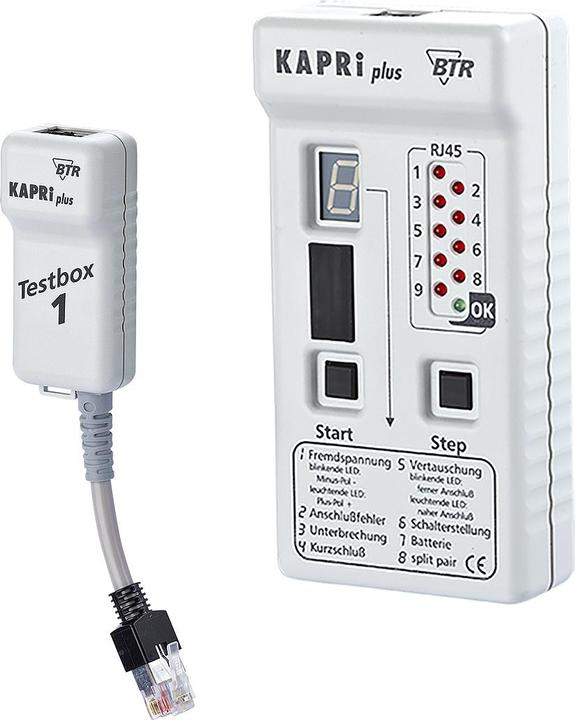

Metz Connect BTR KAPRI plus connection and cable tester for networks Cable tester for networks incl. t...

Metz Connect Installation Tester 130670-E

Manufacturer: Metz Connect
Description: Installation tester with test box 1
Type: 130670-E
Suitable for: Twisted Pair
Design: Twisted Pair cable tester
Display type: LED/LCD
With PC/printer interface: no
Measurement value storage: no
Suitable for network protocol measurement: yes
Includes measurement head: yes

Further details:
Detection and display of the most common installation errors: short circuit, wire break, wire swapping, cable swapping, split pair, display of foreign voltages for each wire with their polarity, line identification by recognizing up to nine test box numbers, detection and display of incorrectly set connection assignments, error indication for each individual wire using nine red LEDs, display by a green LED when no error is detected, clear representation of the type of error through a 7-segment display, under-voltage indication for the battery, automatic testing process, easy operation and interpretation of test results, on/off and start of the testing process via a button, quick test, approximately 3 seconds, query of the error list for multiple errors via a separate button, adjustable connection assignment with nine switches, 9-wire connection cable for testing up to 8-wire data connection cables with shielding, connection via RJ45 connectors, allowing testing of patch cables as well, automatic shutdown after 30 seconds, foreign voltage resistant, test function for detecting loose contacts, reverse polarity protection for the battery connection, low power consumption, resulting in a long battery life.

Scope of delivery: Main unit, test box 1, patch cable, 9 V battery, and storage bag.
EAN: 4250184102465.
