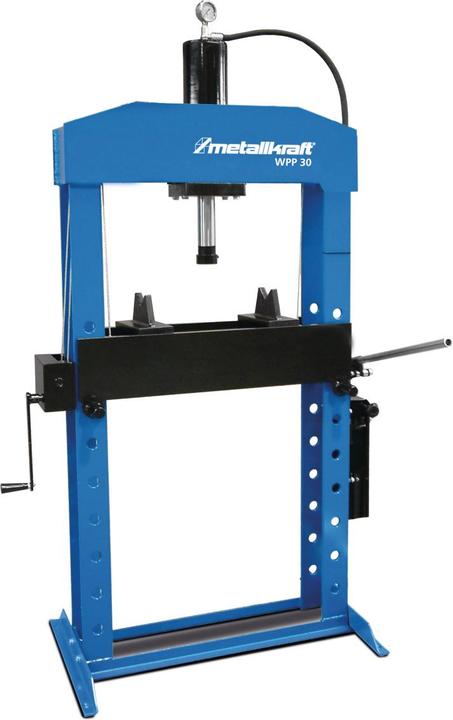

Metallkraft Stürmer - Hydraulische Werkstattpresse WPP 30

Description

For all repair and assembly work, e.g.: straightening of axles, beams, shafts, etc.; pressing in and out of bearings, bolts, and bushings; pressing and crimping tasks; load tests and welding sample inspections; and much more.

Stable welded construction. Robust frame with holes for adjusting the press table. Reliable, particularly precise hydraulics from European manufacturing. Chrome-plated cylinder pistons, pressing force readable via pressure gauge. Automatic return of the piston with a safety valve to protect against overload. When working with flat materials, pressing in bearings, bolts, and similar items, it is essential to use the optional perforated plates. Quality made in Europe.

Technical Data

General Information
Pressing force: 30 t
Maximum load on prism jaw: 7.5 t
Piston stroke: 160 mm
Piston travel distance: 450 mm

Dimensions and Weights
Length (product) approx. 1150 mm
Width/Depth (product) approx. 600 mm
Height (product) approx. 1980 mm
Weight (net) approx. 230 kg
Clear width: 710 mm
Maximum installation height: 1000 mm
Frame depth: 150 mm

Scope of Delivery
2-piece prism set for inserting round material. Winch for raising and lowering the table.
