Metallkraft Slot die no. 45 9.8 x 30.3 mm

Slot die Metallkraft No. 45 9.8 x 30.3 mm, article no.: 388949.8X30.3

• The required hole diameter corresponds to the punch diameter

• The diameter of the die depends on the material thickness

Cutting clearance for round, rectangular and square holes
Material thickness / cutting clearance (mm): 0 - 3.9 / 0.2 | 4 - 8.9 / 0.7 | 9 - 13.9 / 1.2 | 14 - 18.9 / 1.7 | 19 - 24 / 2.2
Example: Punch Ø 15 mm and material thickness 10 mm = die Ø 16.2 mm

Cutting clearance for slotted hole
Material thickness / cutting clearance (mm): 0 - 5.9 / 0.3 | 6 - 14 / 1.0
Example: Punch 10 x 25 mm and material thickness 10 mm = die 11 x 26 mm

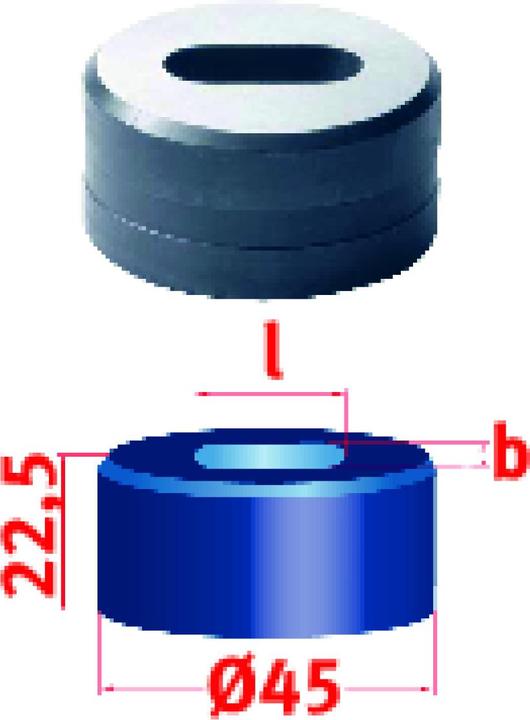

Die diameter: 45 mm
Die height: 22.5 mm
Hole length: 30.3 mm
Hole width: 9.8 mm.
