Product details

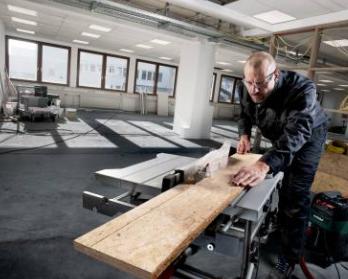

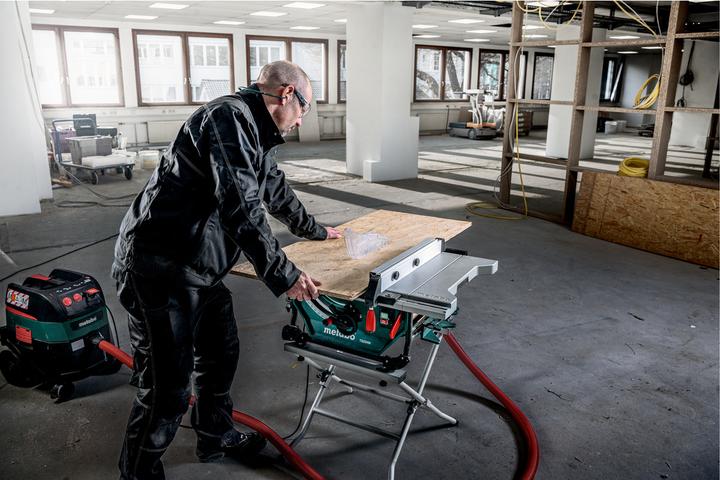

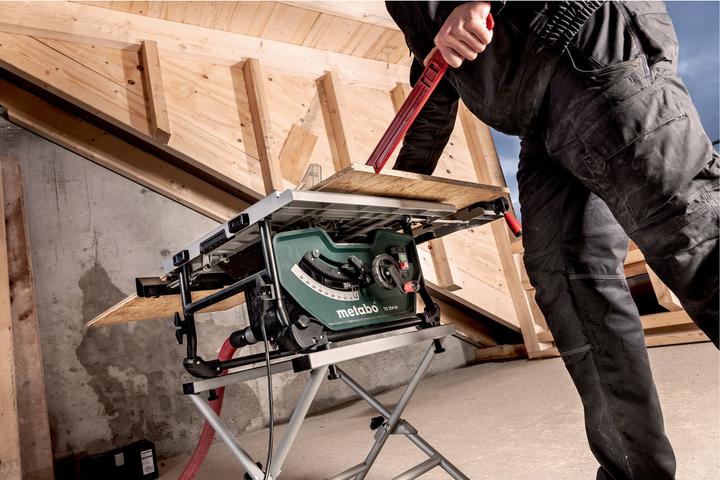

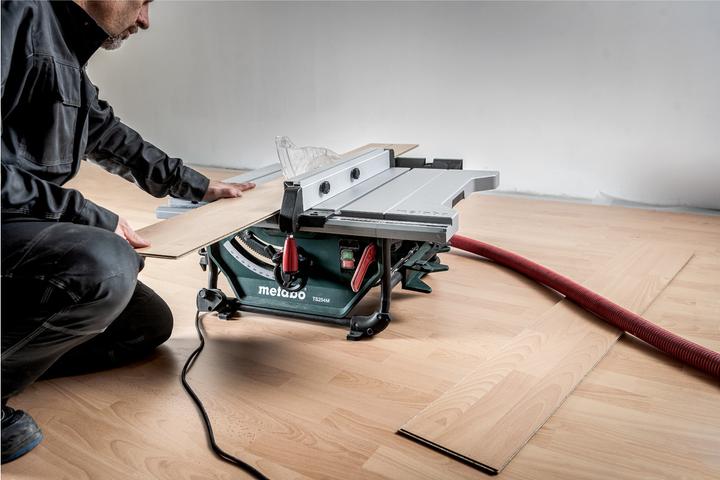

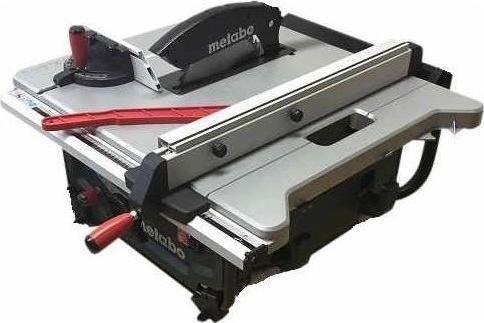

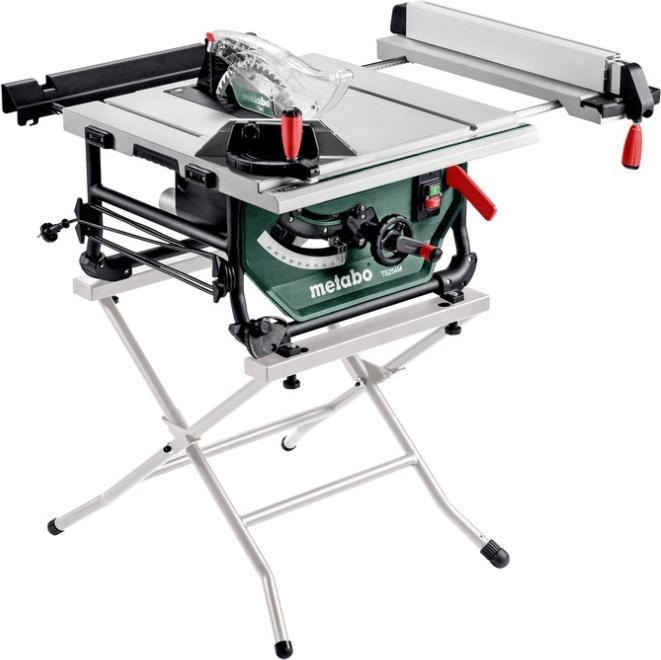

Circular table saw TS 254 MThe compact mobile circular table saw offers good cutting performance and high working comfort. The spindle lock makes it easy to change saw blades. The powerful motor has an electronic overload protection. For an extra large supporting surface, there is a precise, extendable table extension and widening.Features:-Motor brake for quick stop of the saw blade in 3 seconds-Exact saw blade inclination via toothed ring guide-Fine adjustable rip fence with double clamping and quick fixing-Smooth start for long service life of motor and gearbox-Automatic reset to 0-45° after undercut-Restart protection: prevents unintentional start after power interruption-Working height: 334 mm-Cutting height: 0 - 80 mm-Max. Cutting height 90 / 45°: 80 / 48 mm-Max. Cutting width at rip fence: 520 mm-Max. Material width at the rip fence: 195 mm-Idle speed: 4200 /min-Cutting speed: 56 m/s-Saw blade: 254 x 30 mm-Saw blade swivel range: -1.5 - 46.5 °-Nominal power input S1 100%: 1500 W-Cable length: 2.3 m-Sound pressure level: 92 dB(A)-Sound power level (LwA): 105 dB(A)-Uncertainty of measurement K: 3 dB(A).
Max. Depth of cut at 45 | 48 mm |
Max. depth of cut at 90° | 80 mm |
Additional properties | Self-cleaning function |
Power supply | Electrical connection |
Power | 1500 W |
Item number | 13520836 |
Manufacturer | Metabo |
Category | Circular table saws |
Manufacturer no. | 610254000 |
Release date | 5.8.2020 |
Sales rank in Category Circular table saws | 9 of 227 |
May include power adapter | Yes |
Colour | Green, Silver |
Exact colour description | Green, Silver |
Material group | Metal, Plastic |
Material | Metal, Plastic |
Max. Depth of cut at 45 | 48 mm |
Max. depth of cut at 90° | 80 mm |
Nominal diameter | 254 mm |
Table Tilt angle | 46.50° |
Additional properties | Self-cleaning function |
Width | 66.90 cm |
Depth | 74.80 cm |
Power supply | Electrical connection |
Battery equipment | No batteries supplied |
Charger equipment | No charger supplied |
Mains voltage | 230 V |
Cable length | 2.30 m |
Plug type | CEE 7/3 |
Power | 1500 W |
Max. Idle speed | 4200 rpm |
Max. noise level | 92 dB |
Sound power level (LWA) | 105 dB |
Sound pressure level (LpA) | 92 dB |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Angle stop, Carbide saw blade WZ40, Rip fence |
Length | 74.80 cm |
Width | 66.90 cm |
Height | 33.40 cm |
Weight | 24.40 kg |
Length | 74 cm |
Width | 78 cm |
Height | 38 cm |
Weight | 29.54 kg |
