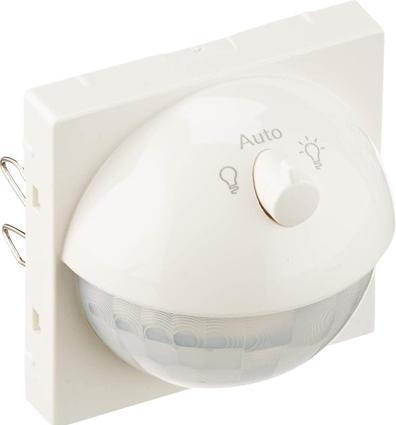

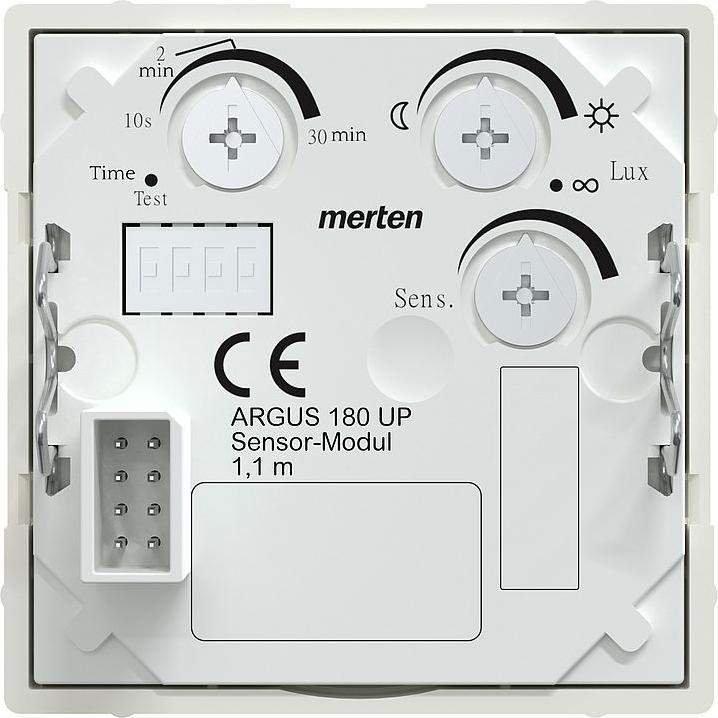

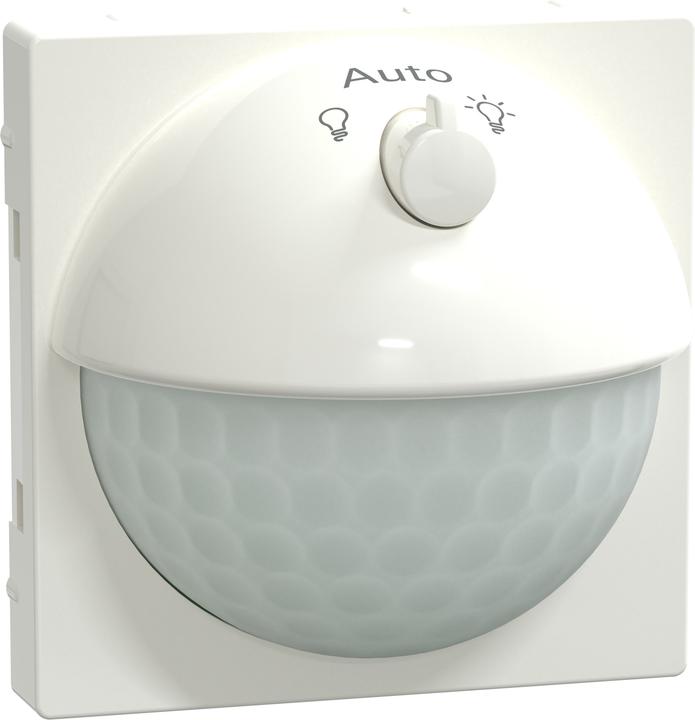

Merten Sensor module

For System M, this motion detector is designed for indoor use and features creep under protection. The sensor module detects moving heat sources, such as people, within an adjustable detection range and activates staircase lighting for a specified duration. It includes a light sensor with an adjustable brightness threshold, ensuring that the lighting only turns on when the ambient light falls below a certain level.

Key functions include:

• Brightness-dependent staircase lighting function
• Continuous on/off operation
• Electronic switch insert
• Relay switch insert
• Universal dimmer insert
• Control insert for 1-10 V DALI
• Brightness-dependent staircase lighting function with channel 1
• Brightness-independent staircase lighting function with channel 2
• Continuous on/off operation with a 2-gang electronic switch insert
• 2-gang relay switch insert
• 2-gang universal dimmer insert

Additional specifications:

• Detection range: 180°
• Control element: manual switch (0, Auto, 1)
• Number of levels: 6
• Number of zones: 46
• Recommended mounting height: 1.1 m
• Range: 8 m to the right and left.
