Merten Plug-in terminals

Minimum order 3
Ratings
Delivered Wed, 28.5.
More than 10 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

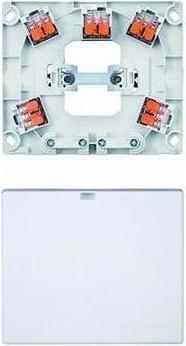

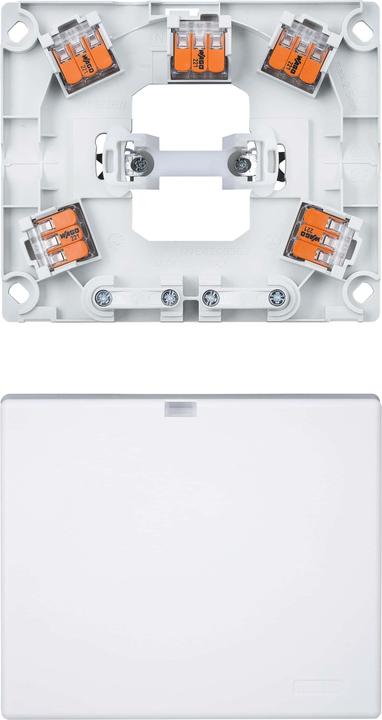

Merten Connection Box MEG1010-9019

Manufacturer: Merten
Description: Surface-mounted connection box for stoves with terminal blocks
Type: MEG1010-9019
Mounting type: Surface-mounted
Terminals: 5 x 2.5 mm²
Connection technology: Screwless
Material: Metal/Plastic
Halogen-free: Yes
Color: Polar White
Suitable for protection class (IP): IP20
Device width: 112.25 mm
Device height: 22.6 mm
Device depth: 132.85 mm

The Merten connection box MEG1010-9019 is designed for stove and appliance connections for surface mounting. It features a break-resistant cover and a snap closure. For connections, there are 5 terminal blocks (3-way) with release levers for rigid and flexible conductors (without end sleeves). The spacious connection area allows cable entry from any side. There are 2 cable entries from below with integrated strain relief. Mounting is done via screw and claw fixation for 60mm flush-mounted boxes, as well as through dowel fixation using additional holes in the corners.

Rated voltage: 450 V
Rated current: 32 A
Terminal rated cross-section: 2.5 mm²

Scope of delivery: Connection box with 5 x 3-way terminal blocks with release lever and claw.
Color: Polar White.
EAN: 4042811212148.

Key specifications

Junction box type
Connector socket
Height
22.60 mm
Width
112.25 mm
Protection type (IP code)
IP20
Length
132.85 mm
Item number
10280876

General information

Manufacturer
Merten
Category
Junction box
Manufacturer no.
MEG1010-9019
Release date
27.12.2018
External links
Manufacturer's site (de)
Minimum order
3
Minimum order
3

Colour

Colour
White
Exact colour description
Polar white RAL number: 9010

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Connector socket
mounting style
Finery
Area of use
Inside

Safety

Protection type (IP code)
IP20

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
22.60 mm
Width
112.25 mm
Length
132.85 mm

Package dimensions

Length
13 cm
Width
11 cm
Height
3 cm
Weight
110 g
