Merten Frame
More than 10 pieces in stock at supplier
Colour10
Length2
Product details

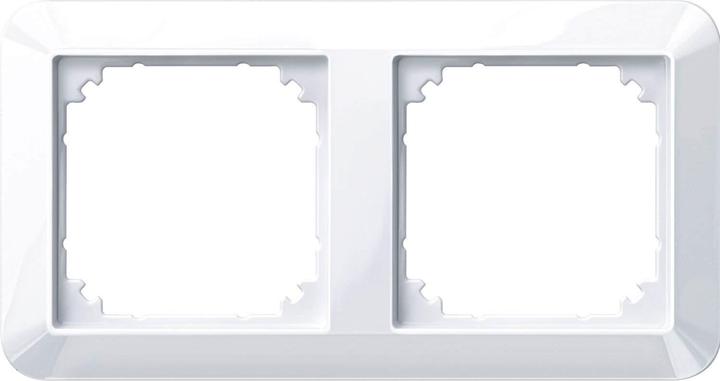

Merten Frame 2f.pws 462219
Manufacturer: Merten
Description: Frame 2f.pws horizontal/vertical
Type: 462219
Number of units: 2
Mounting direction: horizontal and vertical
Number of units horizontal: 2
Number of units vertical: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: no
Material: Duroplastic
Material quality: Duroplast
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp/screw fastening
Width: 80.5 mm
Height: 151.7 mm
Depth: 10.1 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 60 mm
Merten Frame 2f.pws 462219: additional details for vertical and horizontal mounting. Material Duroplast highly scratch-resistant. Color polar white.
Colour | White |
Switch programme type | Covering frame |
Number of inlets | 2x |
Width | 80.50 mm |
Item number | 20219382 |
Manufacturer | Merten |
Category | Accessories switch programme |
Manufacturer No. | 462219 |
Release date | 23.3.2022 |
Colour | White |
Exact colour description | Polar white, Polar White, white |
Material group | Plastic |
Material | Thermoset |
Switch programme type | Covering frame |
Number of inlets | 2x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Additional properties | Halogen-free |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.38 |
Length | 10.10 mm |
Width | 80.50 mm |
Height | 151.70 mm |
Diameter | 60 mm |
