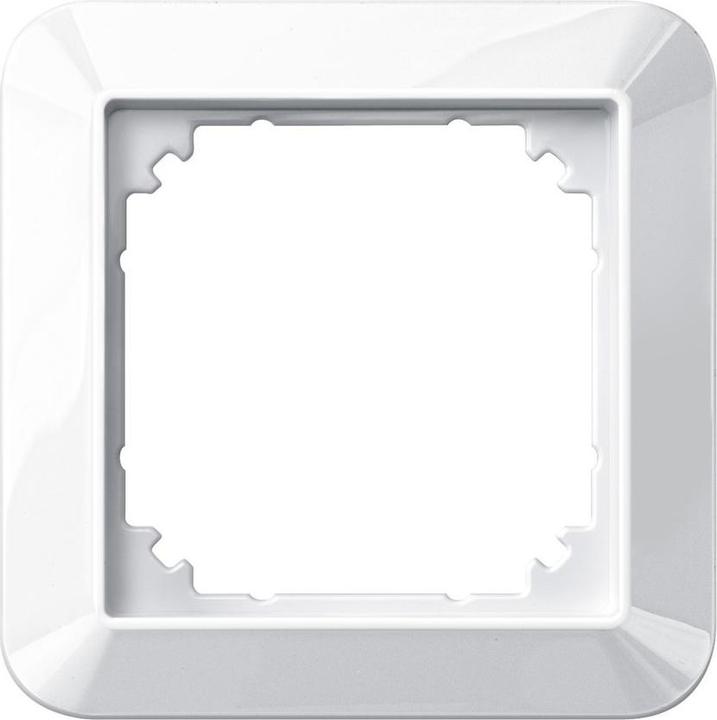

Merten Frame

Merten Frame 1f.pws/gl 389119
Manufacturer: Merten
Description: Frame 1f.pws/gl
Type: 389119
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: no
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp/screw fastening
Width: 80.5 mm
Height: 80.5 mm
Depth: 10.1 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 60 mm
Merten Frame 1f.pws/gl 389119: additional details Material thermoplastic brilliant. Color polar white glossy. Cradle to Cradle CertifiedTM.
