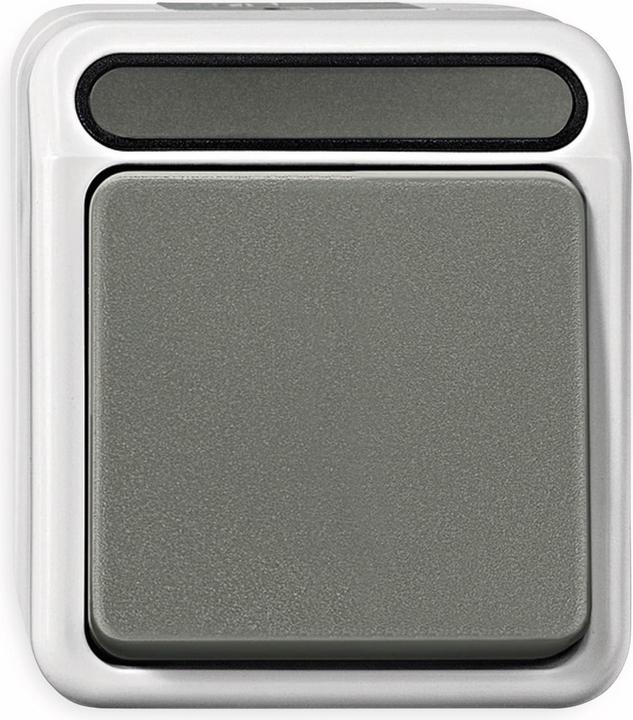

Merten Cross switch

Merten cross switch 1-pole MEG3117-8029

Manufacturer: Merten
Designation: Cross switch 1-pole light grey
Type: MEG3117-8029
Type of circuit: Cross switch
Type of operation: Rocker/button
Assembly: Complete device in surface-mounted housing
Pushbutton switch: No
Number of operating rockers: 1
Type of mounting: Surface-mounted
Type of fastening: Screw fastening
With mounting plate: No
Material: Polypropylene
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Color: Light gray
RAL number (similar): 7035
Text field/inscription area: Yes
Illumination: Without illumination
Suitable for Protection class (IP): IP44
Rated voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: No
Connection type: Plug-in terminal
Washing machine switch: No
Device width: 73 mm
Device height: 83 mm
Device depth: 60 mm
Installation depth: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Min. Device box depth: 0 mm
Compatible with Amazon Alexa: No
IFTTT support available: No

Features:

• Front retrofitting of lighting modules without switch disassembly
• Front measuring and test contacts, accessible without switch dismounting
• Surface mounting
• With plug-in terminals
• Protection class IP 44
• Dimensions approx. 83 x 73 x 56 mm

Accessories:

• LED light pendant, AC 100-230 V AQUASTAR MEG3901-8006
• LED light pendant, AC/DC 8-32 V AQUASTAR MEG3922-8006
• LED long field lighting, AC 100-230 V AQUASTAR MEG3903-8000
• Lettering field inserts AQUASTAR MEG3957-8000
• Double entry AQUASTAR MEG3961-80xx connector
• AQUASTAR MEG3963-80xx pipe entry
• AQUASTAR MEG3964-8029 duct entry
• AQUASTAR MEG3965-80xx slider with spigot
• AQUASTAR MEG3962-8029

Color: Light grey
EAN: 4042811179489.
