Merten 503119 Accessories for electrical switches
Length4
Product details

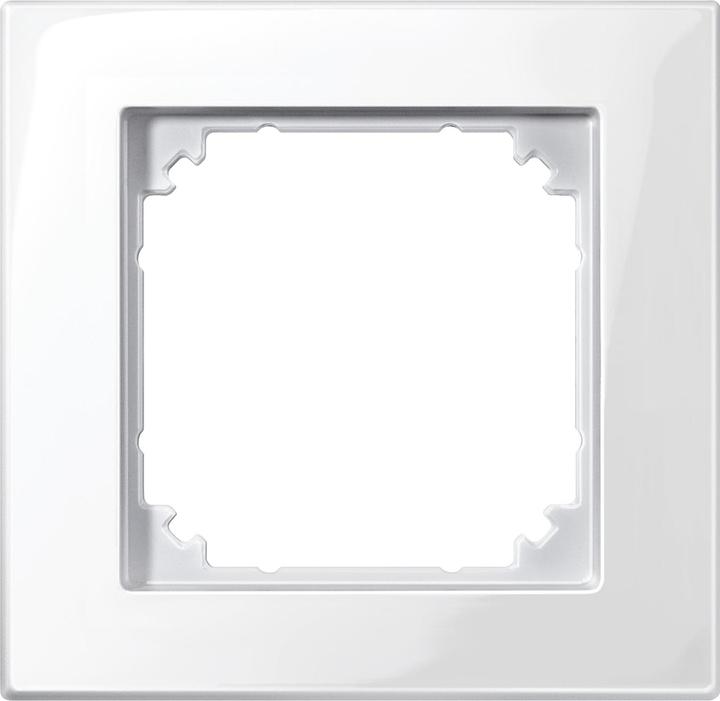

Merten Frame 1f.pws 503119
Manufacturer: Merten
Description: Frame 1f.pws flush-mounted installation
Type: 503119
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: no
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With flap cover: no
Protection class (IP): IP20
Mounting type: clamp/screw fastening
Width: 85.8 mm
Height: 83.4 mm
Depth: 12.5 mm
Installation width: 85.8 mm
Installation height: 83.4 mm
Drilling diameter (opening): 60 mm
Merten Frame 1f.pws 503119: additional details
For flush installation in the wall. To be completed with plaster adapter for M-PLAN II frame, flush-mounted installation M-PLAN II 512403. Accessory formwork adapter M-PLAN II 512499. Material thermoplastic glossy. Color polar white glossy.
EAN: 4042811078430.
Colour | White |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 85.80 mm |
Item number | 14328288 |
Manufacturer | Merten |
Category | Accessories switch programme |
Manufacturer No. | 503119 |
Release date | 16.11.2020 |
External links |
Colour | White |
Exact colour description | Polar white |
Material group | Plastic |
Material | Thermoplastic resin |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Mounting direction | Horizontal, Vertical |
Additional properties | Halogen-free |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂ emissions | 31.32 kg |
Climate contribution | CHF 0.41 |
Length | 12.50 mm |
Width | 85.80 mm |
Height | 83.40 mm |
Diameter | 60 mm |
