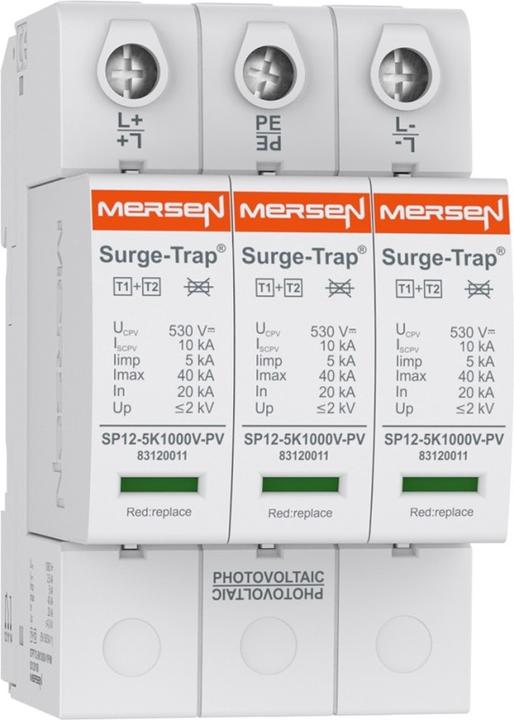

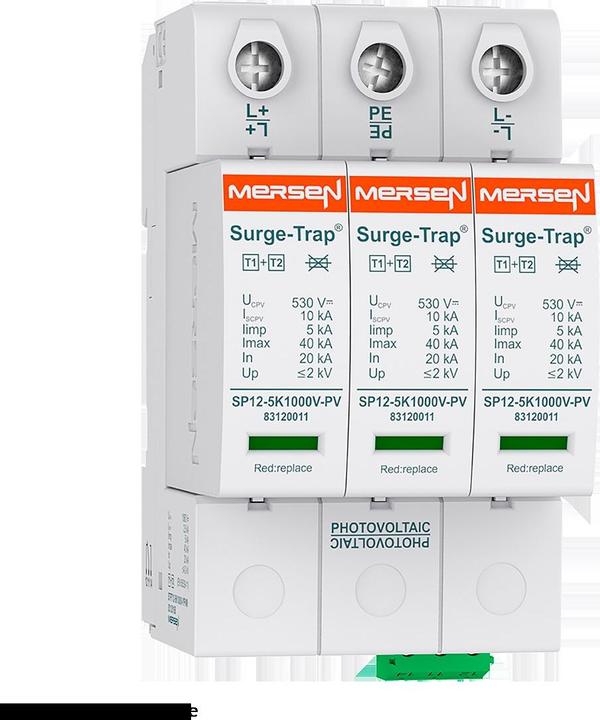

Mersen PV-ÜAB.CONDUCTOR T1+2 5KA 1000V 3 (STPT12-5K1000V-YPV)

Mersen Surge arrester type 1+2 STPT12-5K1000V-YPV Manufacturer :Mersen Designation :Surge arrester type 1+2Surge arrester type 1+2 5kA Ucpv1060V Y PV Type :STPT12-5K1000V-YPV Mains type DC :yes Mains type IT :no Mains type TN :no Mains type TN-C :no Mains type TN-C-S :no Mains type TN-S :no Mains type TT :no Mains type other :no No. of poles :3 Lightning impulse current (10/350 µs) :5 kA Maximum continuous voltage DC :1060 V Nominal voltage DC :1000 V Max. PV voltage :1060 V Protection level :4 kV Protection level (DC+ - DC-) :4 kV Protection level (DC+/DC- - PE) :4 kV Mounting type :Top-hat rail TH35 Size :3 TE Max. conductor cross-section rigid (one-pole) :3 kV Max. conductor cross-section rigid (solid/multistranded) :25 mm² Max. conductor cross-section flexible (fine-stranded) :25 mm Max. conductor cross-section flexible (flexible) :35 mm² Remote signalling :yes Signalling on the device :optical Test class :Type 1 and 2 Integrated back-up fuse :no Energy-coordinated protection to the terminal device :yes Voltage-switching spark gap technology :no Protection class (IP) :IP20 Mersen surge arrester type 1+2 STPTArrester type 1+2 STPT12-5K1000V-YPV: more details STP T1+2 5 PV is a series of combined type 1 + 2/ class I + II devices for the arrester of lightning currents (10/350 ?s) and protection against induced voltage peaks, according to EN/IEC 50539-11 and IEC 61643-31 standards. Mersen uses its dynamic and thermal disconnection system with high breaking capacity, optimised for DC voltage. This means that the system does not require a back-up fuse for interrupting the typical short-circuit currents in PV systems. These lightning current and surge protection devices can be used for all PV applications: solar farms and rooftop installations. The product portfolio includes specific multipole product for inverters with multiple MPPT. , EAN: 8435297860129.
