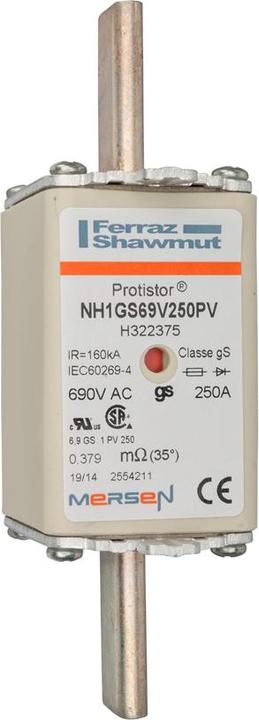

Mersen Fuse Insert NH gS NH1GS69V250PV
Manufacturer: Mersen
Designation: NH gS Fuse Insert Size 1 250A sfü KM
Type: NH1GS69V250PV
Fuse size according to IEC 60269: NH1
Voltage type: AC
Rated current: 250 A
Rated voltage AC: 690 V
Rated breaking capacity: 160 kA
Operating class: other
Indicator type: Combined indicator
Insulated metal grip bottles (IMGL): no
Power loss at rated current: 29 W
Mersen Fuse Insert NH gS NH1GS69V250PV: additional details
Mersen Protistor fuse inserts 690/700V for semiconductor protection offer a wide range of flexibility in application for the protection of modern converter devices. This is a super-fast series that is fully capable of protecting power semiconductors such as diodes, thyristors, GTOs, and IGBT components. The fuse inserts in NH design comply with the regulations according to DIN 43620 and are therefore globally recognized for use in NH fuse bases, NH fuse rails, and NH fuse load disconnect switches. Fuse inserts in various sizes and numerous rated currents allow for extensive device adaptation. The fuses contain melt conductors made of pure silver, embedded in sand, to ensure very good overall breaking integrals (I2t) and high breaking capacities. The contact surfaces are silver-plated, and all components are non-magnetic. All fuses in this series feature a function indicator that, in addition to its visual display function, can also be used to remotely signal the fuse function via an additional microswitch. IEC 60269-4 compliant, UL/CSA Recognized Component, CCC GB 1359.4.
Item number | 33619163 |
Colour | Silver |
Exact colour description | Silver plated |
Material group | Metal |
Material | Sand, Silver |
Fuse type | NH-DIN fuse |
Tripping characteristic | Super fast |
Nominal current | 250 A |
breaking capacity | 160000 A |
Nominal voltage | 690 V |
voltage type | AC |
Country of origin | Tunisia |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
