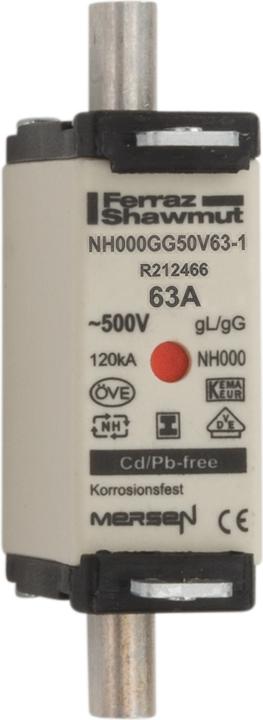

Mersen NH fuse link

Mersen NH Fuse Insert SG NH000GG50V63-1
Manufacturer: Mersen
Designation: NH Fuse Insert SG Size 000 gG 63A/500VKM
Type: NH000GG50V63-1
Fuse size according to IEC 60269: NH000
Voltage type: AC
Rated current: 63 A
Rated voltage AC: 500 V
Rated voltage DC: 250 V
Rated breaking capacity: 120 kA
Operating mode: gL/gG (Full protection for conductors/Full protection for devices)
Design indication: Combination indication
Insulated metal grip tabs (IMGL): Yes
Power loss at rated current: 5.4 W

The NH system is part of the plug fuse systems and consists of the following components: fuse base (possibly with connection covers and phase cover), fuse inserts with contact blades, device for replacing the fuse inserts (low-voltage plug grip). Maintenance and service must be performed by qualified personnel. NH fuse inserts of the usage class gG are used to protect conductors, devices, and systems. They safely disconnect unauthorized overloads and short-circuit currents up to the rated breaking current. gG fuse inserts also protect electrical devices and systems from the electrodynamic effects of high short-circuit currents. VDE 0636 Part 201, IEC 60269-1 and -2.
EAN: 4086500084111.
