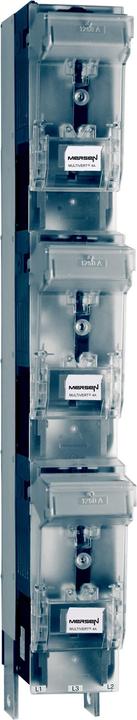

Mersen 1.000.093 Fuse switch disconnector NH size 4a 1250A 185mm

Mersen Fuse switch disconnector 1.000.093 Manufacturer :Mersen Designation :Fuse switch disconnector NH Gr.4a 1250A 185mm Type :1.000.093 Design as main switch :no Design as safety switch :no Max. Rated operational voltage Ue at AC :690 V Rated continuous current Iu :1250 A Conditional rated short-circuit current Iq :50 kA Suitable for fuse links :Form A4 Number of poles :1 With fuse monitoring :no Connection type main circuit :Busbar connection Cable entry :other Equipped with plug connectors :no Suitable for floor mounting :no Suitable for front mounting :no Suitable for busbar mounting :yes Design of operating element :cover handle Position of operating element :front Motor drive optional :no Motor drive integrated :no Design as EMERGENCY STOP device :no Protection class (IP), front :IP20 Mersen fuse-switch disconnector 1.000.093: further details MULTIVERT NH fuse-switch disconnectors fulfil all the functions of an NH fuse-switch disconnector. The construction is designed for direct mounting on busbars in a three-pole arrangement. MULTIVERT 1250A switch disconnectors can be mounted directly on 185mm busbar systems. MULTIVERT 1250A safety edges are designed for NH fuse-links according to IEC/EN 60269-2, VDE 0636-2, size 4a, 1250A. The system is a modular system in which the various products can be optimally combined. MULTIVERT allows the user a quick and easy installation option as well as a high level of safety during installation and maintenance. These MULTIVERT safety edges can be mounted on 185mm busbar systems by means of claw terminals. This version is supplied with cable outlet at the bottom and screw connection M16. , EAN: 9008567009642.
