Mersen 00685.110000 DII 25A 1p snap D-fuse base w.cover DIAZED

NH-DIN fuse, 63 A
Ratings
Delivered between Thu, 3.7. and Sat, 19.7.

Product details

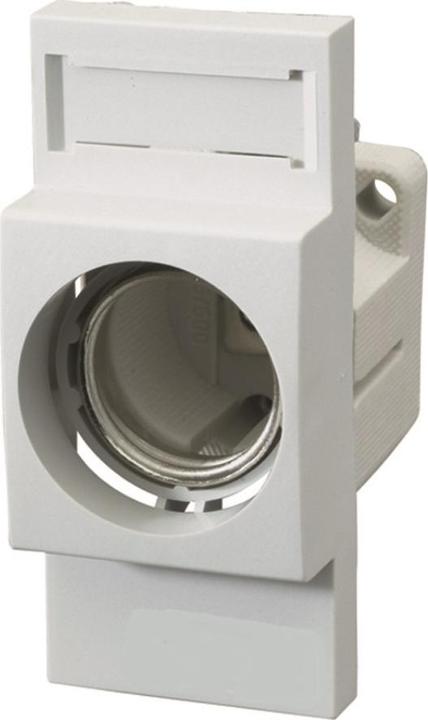

Mersen D-Fuse Base 00685.110000

Manufacturer: Mersen
Designation: D-Fuse Base DII 25A/500V 1-p.mB
Type: 00685.110000
Number of Poles: 1
Size: DII
Material: Porcelain
Design: Insert
Design with Cover: No
Mounting Type: Snap Fastening
Rated Voltage: 500 V
Rated Current: 63 A

The D-fuse system is a first-generation screw fuse system that is still widely used in installations. It is applied in low-voltage systems where the fuse inserts are accessible to non-professionals and can be replaced by them. The D-fuse range includes sizes NDZ, DII, DIII, DIV, and DV. D-fuse bases with D-fuse inserts of operating class gG are used to protect cables and installations. D-fuse inserts reliably disconnect excessive currents and short-circuit currents up to the rated disconnection current. They also protect electrical devices and installations from the electrodynamic effects of high short-circuit currents. DIN VDE 0636-3.

Key specifications

Item number
22654711

General information

Manufacturer
Mersen
Category
Fuses
Manufacturer no.
D211511
Release date
13.10.2022

Material

Material group
Ceramic
Material
Other

Backup Features

Fuse type
NH-DIN fuse
Nominal current
63 A
breaking capacity
25 A
Nominal voltage
500 V
voltage type
AC/DC

Origin

Country of origin
Slovenia

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
10 pcs.

Product dimensions

Width
70 mm
Length
220 mm
Height
220 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
