MDT Switch actuator

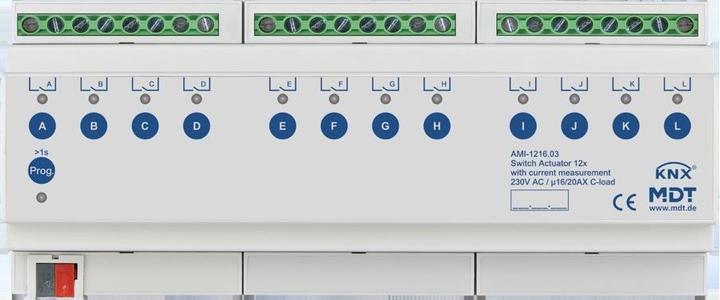

MDT technologies switch actuator AMI-1216.03

Manufacturer: MDT technologies
Designation: Switch actuator 12-fold, 12TE, REG
Type: AMI-1216.03
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: REG
Width in division units: 12
Local/manual operation: Yes
With LED display: Yes
Max. switching capacity: 3680 W
Suitable for C-load: Yes
Max. number of switching outputs: 12
Number of switching outputs: 12
Max. switching current: 20 A
Rated current: 16 A
Rated operating voltage: 230 V
Different phases can be connected: Yes
With bus coupling: Yes
Removable bus module: No
Modular expansion option: No
Protection class (IP): IP20

MDT technologies switch actuator AMI-1216.03: more details
Switch actuator 12-gang, 12TE, REG, 16/20 A, 230 V AC, C-load, industrial, 200 µF, with current measurement. Industrial version with bistable relay current max. 16/20 A, capacitive load max. 200 µF. Extensive functional expansion. Integrated True RMS current measurement (amperage, kW). Current measurement range 10 mA to 20 A. Integrated energy consumption counter function (Wh / kWh). Fast response. EAN: 4251916130817.
