MDT Switch actuator

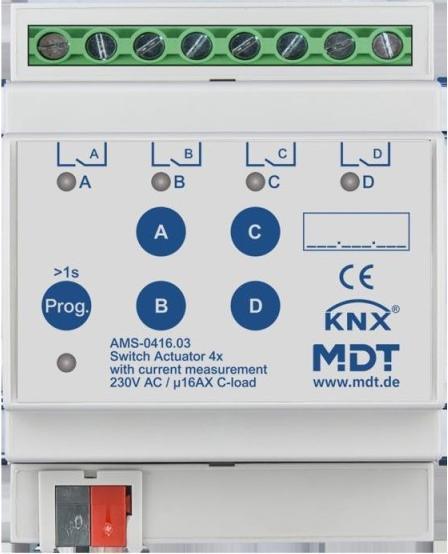

MDT technologies Switching Actuator 4-fold, 4TE AMS-0416.03

Manufacturer: MDT technologies
Description: 4-fold Switching Actuator, 4TE REG, 16 A, 230 V AC
Type: AMS-0416.03
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
Local/Manual Operation: yes
With LED Display: yes
Max. Switching Power: 2500 W
Suitable for C-load: yes
Max. Number of Switching Outputs: 4
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Various Phases Connectable: yes
Power Consumption: 0.3 W
With Bus Coupling: yes
Bus Module Removable: no
Modular Expansion Possibility: no
Protection Class (IP): IP20

Further Details: KNX 4-fold Switching Actuator, 4TE REG, 16 A, 230 V AC, C-load, current measurement, 140 µF. Standard version with bistable relays. Max current 16 A, capacitive load max. 140 µF. Extensive function expansion. Integrated True RMS current measurement. Current measurement range 10 mA ... 16 A. Integrated energy consumption meter function (Wh/kWh). Fast response.
