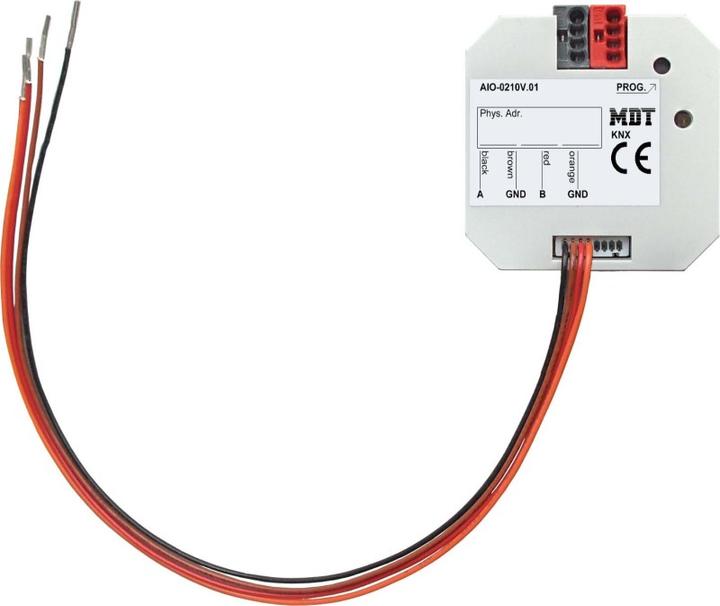

MDT Switch actuator

MDT technologies Switching Actuator 2-fold AIO-0210V.01

Manufacturer: MDT technologies
Designation: Switching Actuator 2-fold I/O UP, 0-10V
Type: AIO-0210V.01
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Mounting Type: Flush-mounted
Min. Depth of Device Box: 35 mm
Design: Basic Module
With LED Display: no
Number of Inputs: 2
With Bus Coupling: yes
Input Size Voltage: yes
Input Size Current: yes
Protection Class (IP): IP20

MDT technologies Switching Actuator 2-fold AIO-0210V.01: further details
KNX Analog I/O 2-fold, flush-mounted, 0-10 V, switchable input/output. Suitable as an analog output for controlling ventilation systems and other devices with a 0-10 V input. Also suitable as an analog input for capturing speed or other 0-10 V measurement data. Each channel can be configured independently (input/output). Inputs/outputs galvanically isolated from the KNX bus. Inputs/outputs galvanically interconnected. Voltage for output operation is generated within the actuator. No external power supply required.

Input Operation: Sensor type 0-10 V / 2-10 V or 0-20 mA / 2-20 mA (switchable), measurement value scaling, data point types adjustable, Min/Max values, wire break detection, threshold function, step controller.

Output Operation: 0-10 V, data point type adjustable, setpoint specification via 1 Bit / 1 Byte / 2 Byte, blocking function, emergency operation, day/night function to limit the setpoint.

Installation in switch box.
Dimensions (H x W x D): 41 x 41 x 12 mm.
Quick download of the application (long frame support from ETS 5).
EAN: 4251916130008.
