MDT Switch actuator 4-fold, 2TE 0-10V on/off toggle.

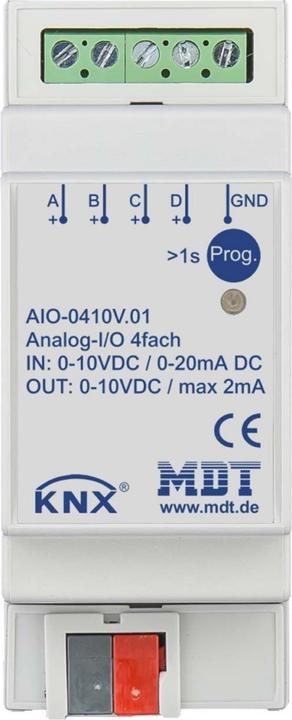

KNX Analog IO 4-fold, 2TE REG, 0-10 V, switchable input-output. Suitable as an analog output for controlling ventilation systems and other devices with a 0-10 V input. Also suitable as an analog input for capturing speed or other 0-10 V measurement data. Each channel can be configured independently. Inputs and outputs are galvanically isolated from the KNX bus. Inputs and outputs are galvanically connected to each other. The voltage for output operation is generated in the actuator. No external power supply is necessary. Input operation: Sensor type 0-10 V, 2-10 V or 0-20 mA, 2-20 mA switchable, measurement scaling, data point types adjustable, min-max values, wire break detection, threshold function, step controller. Output operation: 0-10 V, data point type adjustable, setpoint specification via 1 Bit, 1 Byte, 2 Byte, lock function, emergency operation, day-night function to limit the setpoint. Fast application download, Long Frame Support from ETS. AIO-0410V.01.
