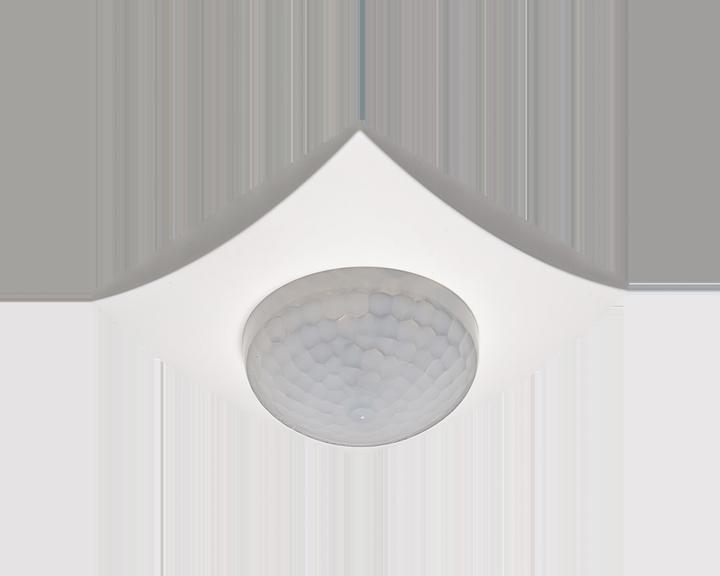

MDT Presence detector

MDT technologies Presence detector 360° SCN-P360K3.03 Manufacturer: MDT technologies Designation: Presence detector 360° constant light control Type: SCN-P360K3.03 Bus system KNX: yes Bus system KNX radio: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without Radio bidirectional: no Design: presence detector Mounting type: flush-mounted Material: plastic Material grade: thermoplastic Surface protection: other Finish: matt Color: white RAL number (similar): 9010 Transparent: no With bus coupling: yes Extension unit input: no Operating mode switch: yes Animal track: no Staircase monitoring: yes Response brightness adjustable: yes Teach function for response brightness: no Switch-off delay self-learning: no Optimal mounting height: 2.5 m Max. Range to one side: 5.5 m Detection field diameter on floor: 11 m Detection angle horizontal: 360 ° Number of channels: 3 Min. switch-on time: 1 s Max. switch-off time: 240 min Min. switch-off time: 2.5 m Duty cycle: 240 min Min. depth of device box: 35 mmMDT technologies presence detector 360° SCN-P360K3.03: more detailsPresence detector 360° with constant light control, 3 sensors. Pure white matt. Version for ceiling mounting in the switch box. Intelligent constant light control for up to 3 light strips. Extensive application. 3 sensors with lens for presence detection. Adjustable standby and presence sensitivity for day, night and alarm. Range 11m Ø, presence 5m Ø. 3 light channels, sensors can be evaluated individually. 1 HVAC and 1 alarm/signaling channel. Short-time presence to reduce the overrun time. Intelligent switching function for automatic and manual operation. Blocking and forced function with fallback time. Extensive day/night function with 2nd switching object. Integrated white LED night light. Orientation light function for leaving the room. Avoid false alarm for alarm channel by reduced sensitivity and adjustable observation window. , EAN: 4251916111458.
