MDT LED controller

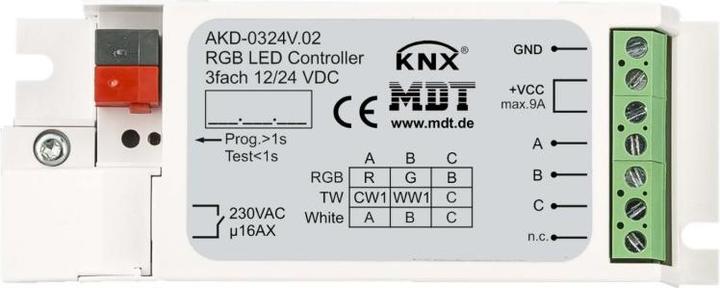

MDT technologies LED controller 3-channel AKD-0324V.02.

Manufacturer: MDT technologies
Name: LED controller 3-channel 3/6A, RGB
Type: AKD-0324V.02
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Design: Dimming actuator
Mounting type: Recessed installation
With bus coupling: Yes
Bus module removable: No
Extension input: No
On-site/manual operation: No
With LED display: No
Number of outputs: 3
Output power: 72 W
Power add-on usable: No
Voltage: 12-24 V
Parallel operation possible: Yes
Frequency: 1000 Hz
Protection class (IP): IP20

LED controller 3-channel 3/6A, RGB. For 12/24V CV LED, 3 single channels or RGB, TW. Extensive application. Absolute and relative dimming for HSV color space and RGB. Tunable White color temperature control. Selectable dimming curve and PWM frequency up to 1000Hz. Global and individual dimming speeds. Individual and predefined sequences (e.g., TV simulator). For 12/24V CV LED (common anode). Switchable load sharing: 3 channels 3A each or 1 channel 4.5A and 2 channels 2.25A each. Parallel operation of two channels with 6A. Operating modes: 3 x white, RGB, Tunable White. Automatic color temperature control Dim2Warm. Dynamic daylight control HCL (Biologically Effective Light). Automatic time-dependent dimming. Day/night function. Overcurrent and temperature monitoring. Intelligent 16A C-load relay output for switching external LED power supply. Dimensions (W x H x D): 46mm x 25mm x 113mm. EAN: 4251916130046.
