MDT KNX push button

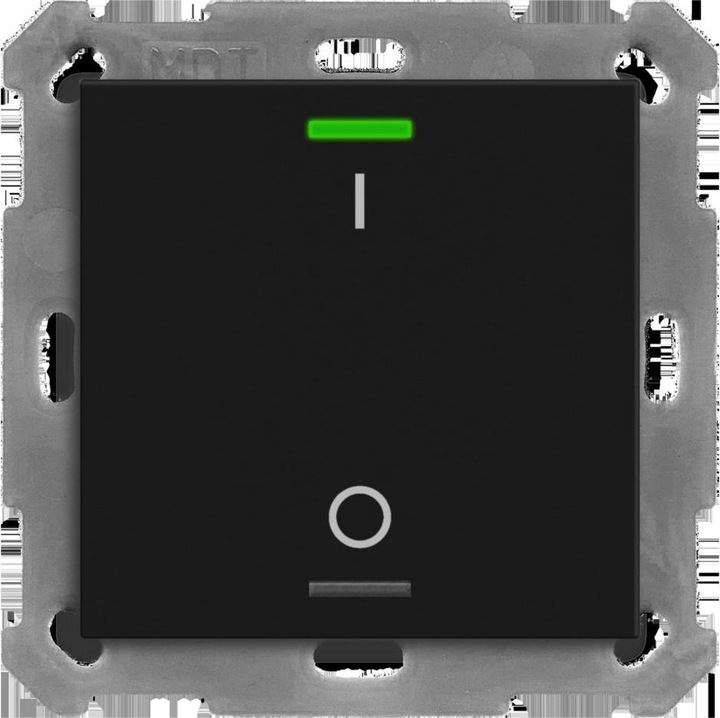

MDT technologies KNX push button light 55 1-fold BE-TAL550106.B1

Manufacturer: MDT technologies
Designation: KNX push button light 55 1-fold RGBW, matt, switching
Type: BE-TAL550106.B1
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: Flush-mounted
With theft/demounting protection: No
With bus coupling: Yes
Number of actuating points: 2
Number of buttons: 1
With LED display: Yes
With labelling field: No
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface finish: Matt
Colour: Black
RAL number (similar): 9011
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of device box: 35 mm

Further details: KNX push button light 55 1-gang, RGBW, matt black, switching. I/O symbol version with 1 push-button pair / 2 push-button surfaces. Integrated bus coupling unit. Suitable for 55 mm switch ranges such as GIRA E2 or BERKER B3, B7 or JUNG A550 or MERTEN M-Pure. The buttons are freely adjustable as button pair or single buttons. One- and two-button operation for switching, dimming, blinds, and values. Switching values/scenes with up to 4 values. Short/long push-button operation with 2 objects. Innovative group control with long/extra long push-button action. New multiple tap function sends up to 4 values/DPTs to the same or different objects. Two RGBW status LEDs per button pair. LED brightness controllable via day/night or brightness object. 4 logic blocks. Integrated bus coupler. 3-year product guarantee. EAN: 4251916112738.
