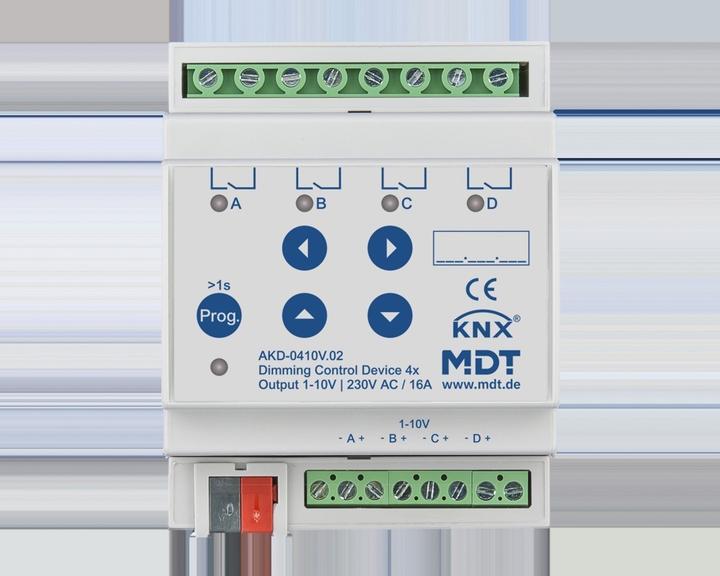

MDT Dimming actuator

MDT technologies dimmer actuator 4-fold 4TE REG AKD-0410V.02

Manufacturer: MDT technologies
Description: 4-fold dimmer actuator 4TE REG 1-10V RGBW
Type: AKD-0410V.02
KNX Bus System: Yes
KNX Wireless Bus System: No
Wireless Bus System: No
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: None
Bidirectional Wireless: No
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: Yes
Subordinate Input: No
Local/Manual Operation: Yes
With LED Display: Yes
1-10 V Interface: Yes
Max. Switching Current (resistive load): 16 A
Max. Switching Power: 3680 W
Number of Outputs: 4
Protection Class (IP): IP20

Further Details: KNX 4-fold dimmer actuator, 4TE REG, 1-10 V RGBW. Dimming control device for switching and dimming 1-10 V electronic ballasts with switching relay, max. current 16 A, capacitive load max. 140 µF. Push button for manual operation and LED display per channel. For controlling 1-10 V electronic ballasts. With RGBW functionality. RGB and HSV control with extensive color functions. Control voltage for max. 30 electronic ballasts per channel. Polarity protection. With built-in switching relay for 30 electronic ballasts / 30 W, 20 electronic ballasts / 58 W, 15 electronic ballasts / 2 x 36 W, 10 electronic ballasts / 2 x 58 W. Adjustable switch-on behavior. Adjustable minimum and maximum dimming value. Adjustable dimming speed. Central functions. 8 scenes per channel. 1 Bit automatic function.
