MDT Binary input

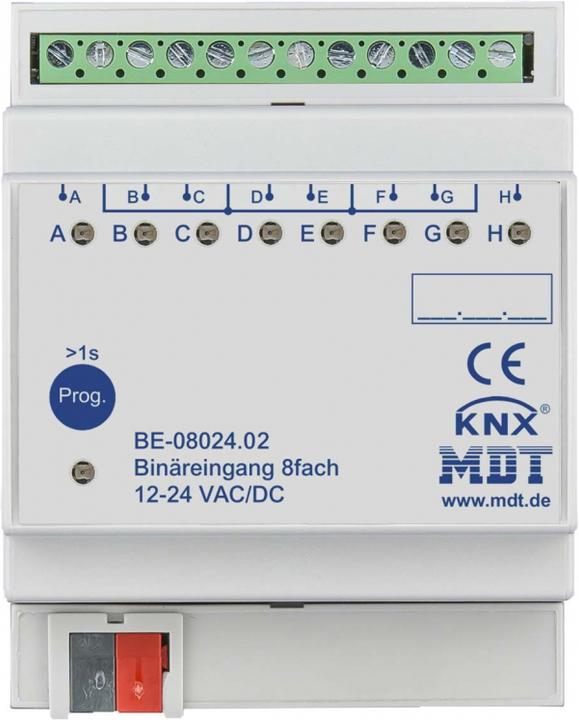

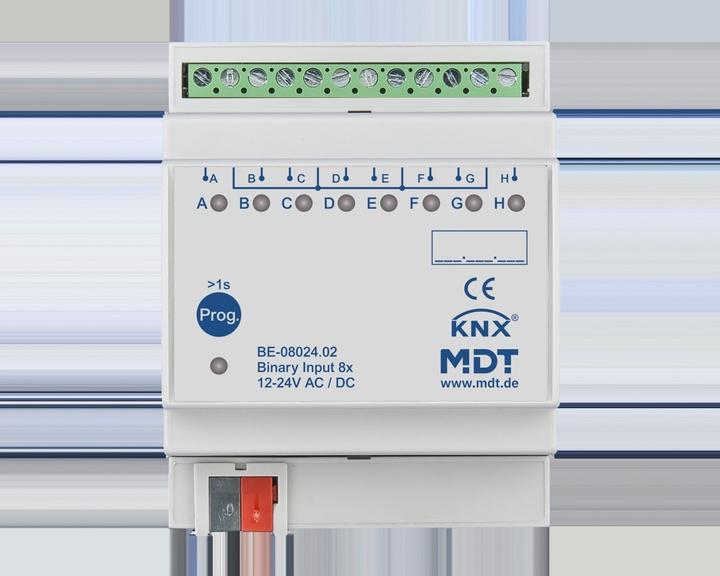

MDT technologies Binary input 8-fold 4TE BE-08024.02 Manufacturer: MDT technologies Designation: Binary input 8-fold 4TE REG, 24VAC/DC Type: BE-08024.02 Bus system KNX: yes Bus system KNX radio: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without Radio bidirectional: no Mounting type: REG Width in pitch units: 4 With bus coupling: yes Bus module removable: no Control LED: no With LED display: yes Number of inputs: 8 Input voltage: 12..24 V Type of input voltage: AC/DC External query voltage required: yes Protection class (IP): IP20MDT technologies binary input 8-fold 4TE BE-08024.02: further detailsBinary input 8-fold, 4TE, REG, 24VAC/DC version. Version for control signals 12-24VAC/DC. LED display for each channel, cable length max. 100m. For connection of push buttons, switches, window contacts. New multi-tap function, sends up to 4 values/DPTs to same or different objects. Innovative group control with long/extra long keystroke. 4 integrated logic modules, e.g. for evaluation of inputs (e.g. window closed or send second object). Normally open or normally closed operation, send contact state. Dimmer and shutter function for one- and two-button operation. Send values, forced operation. Scenes, blocking objects for each channel. Pushbutton operation with short/long pushbutton action and 2 objects. Cyclic sending, sending after reset. , EAN: 4251916110086.
