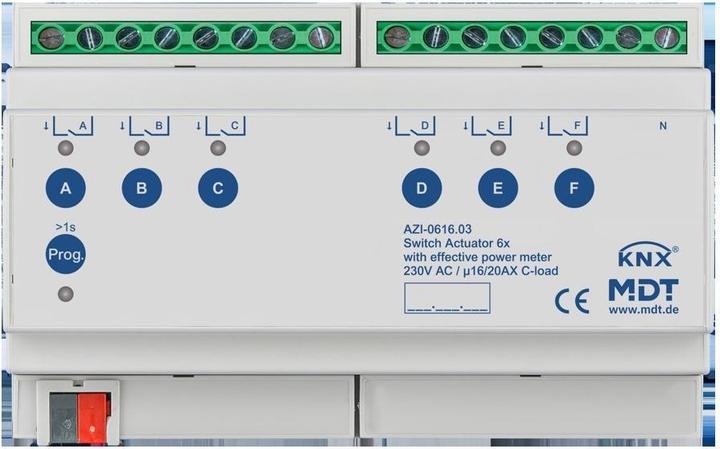

MDT AZI-0616.03

MDT technologies switch actuator 6-fold, 8TE AZI-0616.03. Manufacturer: MDT technologies. Designation: Switch actuator 6-fold, 8TE REG, 16/20 A, 230 V. Type: AZI-0616.03. Bus system KNX: Yes. Bus system KNX radio: No. Bus system radio bus: No. Bus system LON: No. Bus system Powernet: No. Other bus systems: Without radio. Bidirectional: No. Mounting type: REG. Width in division units: 8. On-site/manual operation: Yes. With LED display: Yes. Max. switching capacity: 3680 W. Suitable for C-load: Yes. Switching capacity: 3680 W. Max. number of switching outputs: 6. Number of switching outputs: 6. Max. switching current: 20 A. Rated current: 16 A. Rated operating voltage: 230 V. Different phases can be connected: Yes. With bus coupling: Yes. Removable bus module: No. Modular expansion option: No. Protection class (IP): IP20.

MDT technologies switch actuator 6-fold, 8TE AZI-0616.03: More details. Switch actuator 6-gang, 8TE, REG, 16/20 A, 230 V AC, C-load, industrial, 200 µF, with active power meter. Industrial version with bistable relay, current max. 16/20 A, capacitive load max. 200 µF. Extensive functional expansion. Integrated true RMS current measurement and voltage measurement. Real active power meter (Wh / kWh). Current measurement range 10 mA to 20 A. Active power, reactive power, current, and voltage values. Push-button for manual operation and LED display per channel. Time functions (switch-on/switch-off delay, staircase lighting function). Inputs and outputs for threshold values. Priority/forced operation with automatic fall-back time. Logical links, 8 scenes per channel. Operating hours counter. Extended status functions (inverted, cyclical, on disable). Adjustable behavior on bus voltage failure/recovery. All L connections separate, 4 mm² / 2 x 2.5 mm² connection terminals. EAN: 4251916130862.
