Max Hauri UP mounting frame size 1x1 modino exo
Free shipping starting at 50.–

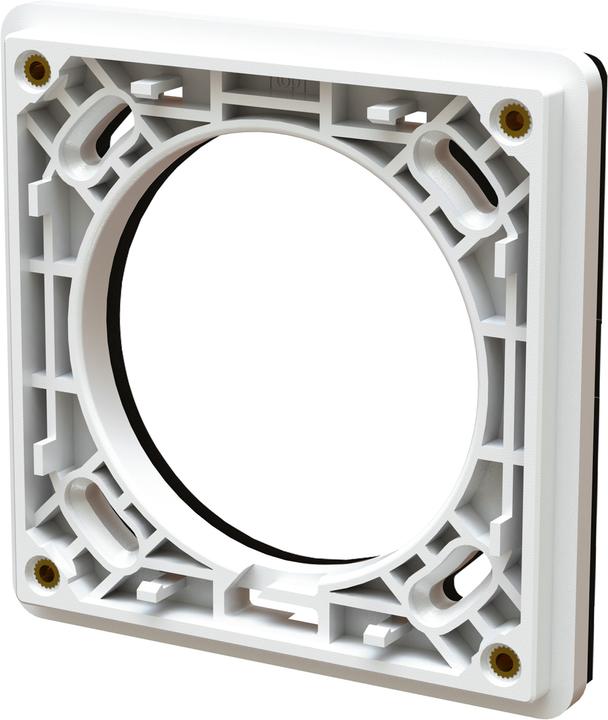

Mounting frame, size 1x1, design: flush-mounted, with foam rubber seal, color: white, IP protection class: IP55, modino exo.
This mounting frame is designed for the installation of devices from the modino exo line in flush-mounted applications. The IP55 protection class provides complete dust and touch protection (IP5X) as well as protection against water jets (IPX5) for the assembled device. This protection is ensured with the plugged-in IP55 connector and the closed flap cover. With its IP55 rating, it also meets all requirements of the standard SN 441011.
The modino exo switch and socket program guarantees durability and Swiss design. It is the right solution for harsh environments in buildings, in commercial settings, in public facilities, and in recreational areas. The antibacterial surface reduces the risk of infection from frequent contact, for example, in public spaces.
Colour | White |
Switch programme type | Electrical installation Mounting plate |
Width | 90 mm |
Documents | |
Item number | 20830959 |
Manufacturer | Max Hauri |
Category | Accessories switch programme |
Manufacturer no. | 141216 |
Release date | 9.5.2022 |
Sales rank in Category Accessories switch programme | 170 of 19351 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Polycarbonate |
Switch programme type | Electrical installation Mounting plate |
Mounting type | Flush-mounted |
Protection type (IP code) | IP55 |
CO₂-Emission | |
Climate contribution |
Length | 90 mm |
Width | 90 mm |
Height | 10.50 mm |
Weight | 30 g |
Length | 9.30 cm |
Width | 9.20 cm |
Height | 3.10 cm |
Weight | 34 g |
