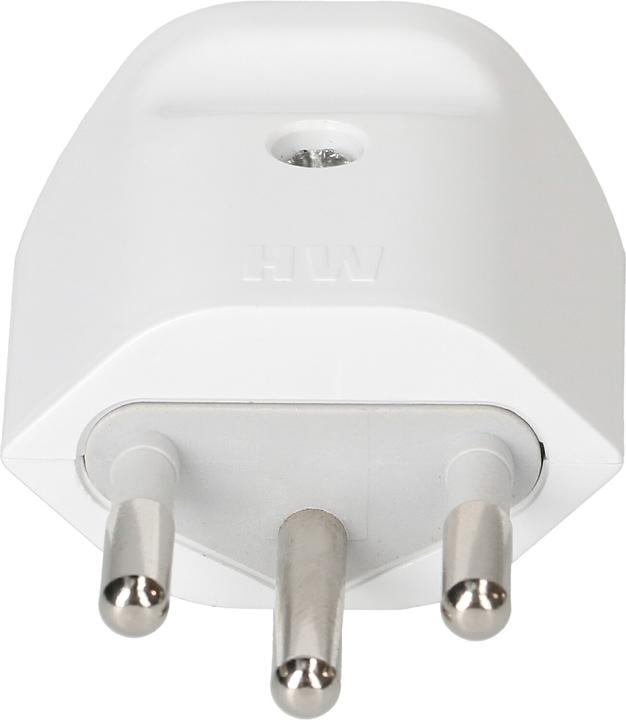

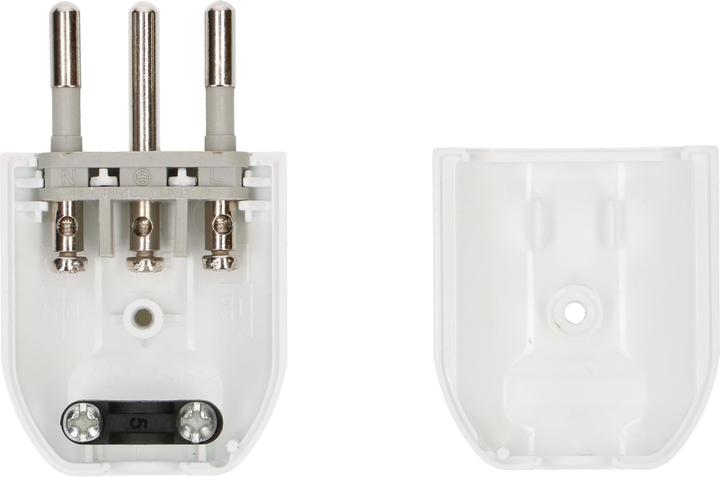

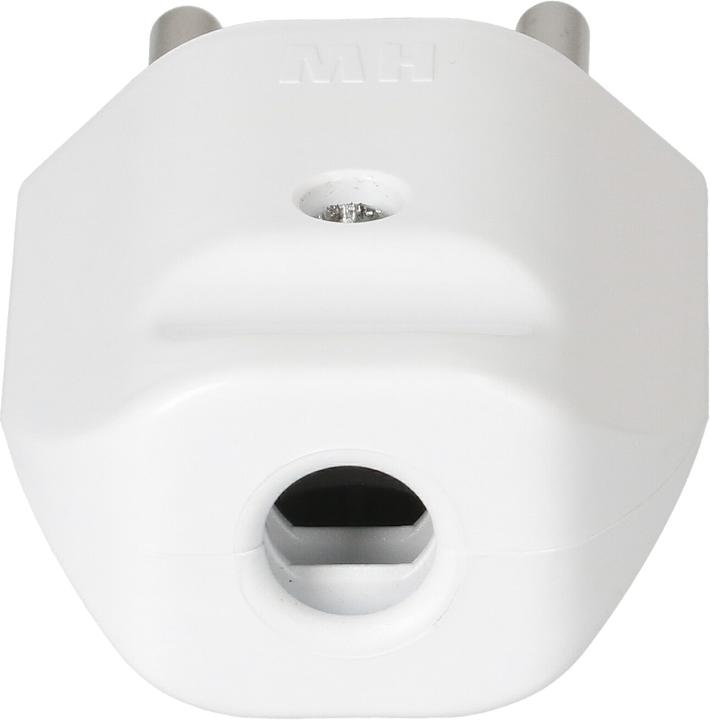

The 3-pole MH Type 12 plug, with a rated current of 10A and a rated voltage of 250V, simplifies and shortens the connection process thanks to its innovative connection method. The three plug pins are firmly connected to each other via an insulator and can be removed as a complete unit from the plug housing for easier installation. The wires are inserted perpendicular to the plug direction and securely clamped using combination screws with a cross/slot design. The strain relief bridge ensures a secure fit for the connection cable. Once connected, ergonomic grip recesses allow for effortless plugging and unplugging of the MH12 plug. Convenient, simple, well thought out, and user-friendly.
Connection type | Male plug |
Plug + Socket Type | Type 12 |
Exact colour description | White |
Item number | 17711742 |
Manufacturer | Max Hauri |
Category | Power plugs + connectors |
Manufacturer no. | 164451 |
Release date | 3.6.2022 |
Sales rank in Category Power plugs + connectors | 3 of 4150 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Polycarbonate (PC) |
Connection type | Male plug |
Plug + Socket Type | Type 12 |
Nominal voltage | 250 V |
Nominal current | 10 A |
Number of cores | 3 x |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 58 mm |
Width | 35 mm |
Height | 20 mm |
Weight | 20 g |
Length | 5.60 cm |
Width | 3.80 cm |
Height | 2 cm |
Weight | 21 g |
