Maico Slide-in silencer

Maico Insertion Silencer SDE 16

Manufacturer: Maico
Designation: Insertion Silencer
Type: SDE 16
Outer Diameter: 162 mm
Flexible: yes

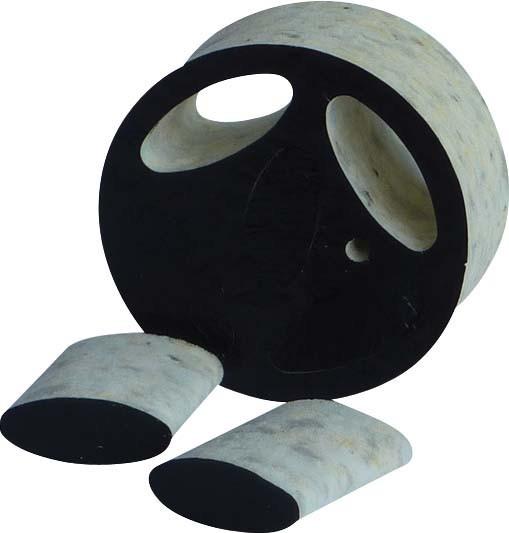

The Maico Insertion Silencer SDE 16 can be used as a silencer or for pressure regulation in flexible and spiral duct systems. It is suitable for both supply and exhaust ventilation and can be flexibly adjusted to the conditions by removing the plugs. A small opening for measuring air volume is provided. The silencer requires little space and is easy to install as well as retrofittable. It is made of fire and mold-resistant foam, in accordance with the requirements of emission class M1, and can be easily cleaned with a vacuum cleaner.

Article: SDE 16
Installation Location: Duct
Material: PU Foam
Weight: 0.1 kg
Weight with Packaging: 0.13 kg
Nominal Diameter: 160 mm
Suitable for Nominal Diameter: 160
Outer Diameter: 162 mm
Width: 165 mm
Height: 165 mm
Depth: 50 mm
Width with Packaging: 165 mm
Height with Packaging: 165 mm
Depth with Packaging: 50 mm

Insertion Loss:

• At 63 Hz: 6.5 dB / 3 dB / 1.5 dB
• At 125 Hz: 7 dB / 3.5 dB / 2.5 dB
• At 250 Hz: 4 dB / 2.5 dB / 1.5 dB
• At 500 Hz: 9.5 dB / 5.5 dB / 3.5 dB
• At 1 kHz: 13 dB / 8.5 dB / 6 dB
• At 2 kHz: 16 dB / 8.5 dB / 6 dB
• At 4 kHz: 18 dB / 15 dB / 12 dB
• At 8 kHz: 22 dB / 20 dB / 17 dB

Insertion Loss Note: Data for 1, 3, and 5 openings
EAN: 4012799442165.
