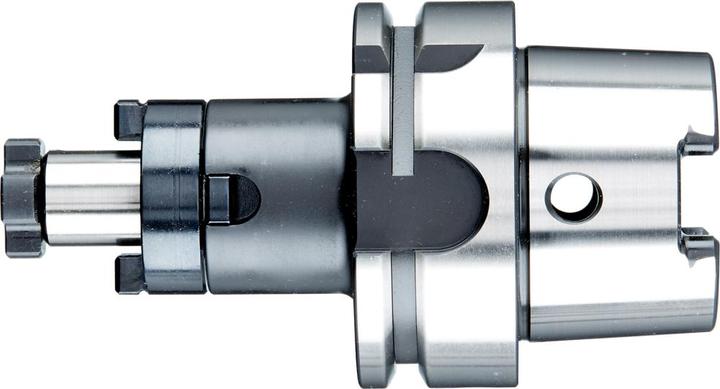

Magni Combination shell end mill arbor DIN69893A HSK-A63 16x60mm FORTIS
More than 10 pieces in stock at supplier
Product details
Combination shell end mill arbor made of alloyed case-hardening steel. Hardened to 58 ± 2 HRC, with a minimum depth of 0.5 mm. The tensile strength in the core after case-hardening is approximately 950 N/mm². Features a taper according to DIN 254 with a taper angle tolerance of AT3. Tool holder conforms to DIN 69871 with a concentricity of ± 0.006 mm. Balancing quality is G 2.5 at 25000 min⁻¹. Suitable for mounting shell end mills DIN 841 and DIN 1880, as well as angular end mills DIN 842 and cutterheads DIN 1830. Delivery includes a combination arbor complete with milling cutter tightening screw, drive ring, and feather key.
Diameter cutter | 16 millimetres |
Shaft diameter | 60 mm |
working length | 60 mm |
Item number | 46566291 |
Material | Alloyed case-hardening steel |
Material group | Metal |
Items per sales unit | 1 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Diameter cutter | 16 millimetres |
Shaft diameter | 60 mm |
Length | 60 mm |
working length | 60 mm |
