Lingg & Janke LING KNX binary input/output
Switch actuatorOperating voltage2
Product details

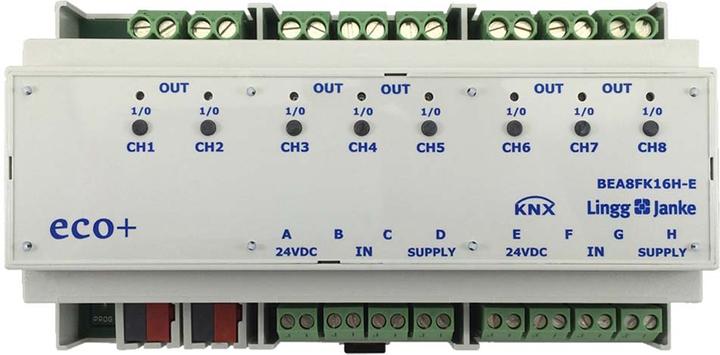

Lingg&Janke binary input/output eco+ BEA8FK16H-E
Manufacturer: Lingg&Janke
Designation: Binary input/output eco+ 8-fold 230VAC/DC 16A
Type: BEA8FK16H-E
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Ethernet: No
Mounting type: REG
Width in pitch units: 9
With bus coupling: Yes
LED control: No
Number of inputs: 8
Max. switching current: 16 A
Switching current: 16 A
Suitable for C load: Yes
Number of output channels: 8
Switching function: Yes
Different phases can be connected: Yes
Protection class (IP): IP20
The Lingg&Janke binary input/output eco+ BEA8FK16H-E is a switching actuator with contact scanning for potential-free contacts, with a maximum cable length of 100 m. Programming is done via ETS software.
Actuator type | Switch actuator |
Operating voltage | 230 V |
Mounting type | Top-hat rail |
Smart Home Protocol | KNX |
Items per sales unit | 1x |
Item number | 34276606 |
Manufacturer | Lingg & Janke |
Category | Actuator |
Manufacturer no. | 79241 / 79241SEC |
Release date | 17.5.2023 |
External links |
Actuator type | Switch actuator |
Max. Switching capacity | 16 W |
rated current | 16 A |
Operating voltage | 230 V |
Number of switching outputs | 8x |
Mounting type | Top-hat rail |
Protection type (IP code) | IP20 |
Smart home | Compatible |
Smart Home Protocol | KNX |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |
Items per sales unit | 1x |
