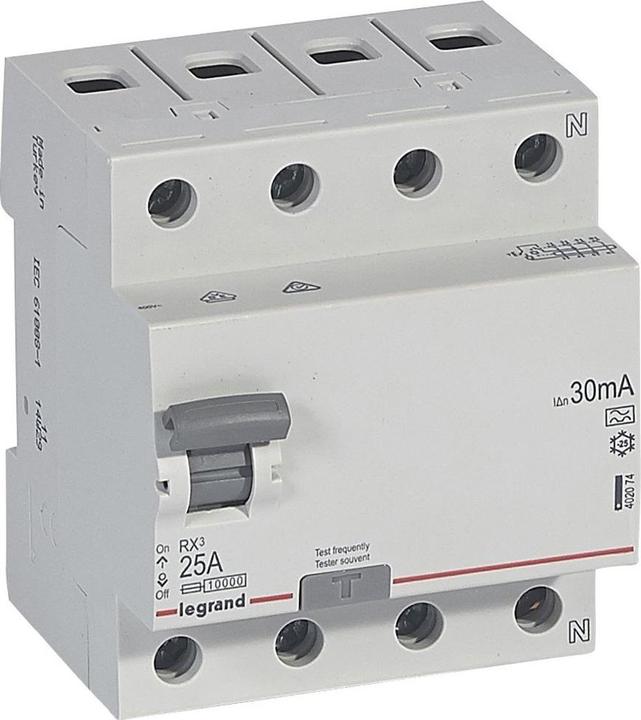

FI residual current circuit breaker, Type A, rated current In 25 A, rated residual current Idn 30 mA, rated voltage Un 400 VAC, rated frequency 50 Hz, 4-pole, 1 piece.
Benefit: The RX³ Type A residual current circuit breaker is designed to detect alternating and pulsating direct residual currents according to VDE 0664-10, EN 61008-1. It operates without delay and ensures increased operational safety through reduced false tripping.
Installation: The circuit breaker can be easily mounted with 4 modular units (TE) on DIN rail profiles according to standard EN 60715 using snap-on quick fastenings.
User-friendly display: The residual current circuit breaker features clear information displayed on the front of each device and is equipped with an On/Off switch labeling field.
Note: The installation of auxiliary devices is not possible.
Technical data: 4-pole, Type A, rated current In 25 A, rated residual current Idn 30 mA, rated voltage Un 400 VAC, rated frequency 50 Hz, impulse current withstand up to 250 A, rated short-circuit current 10 kA with appropriate upstream protection.
Circuit breaker type | Fault current circuit breaker |
Length | 44 mm |
Width | 44 mm |
number of poles | 4 |
Mounting type | Top-hat rail |
Item number | 32098027 |
Manufacturer | Legrand |
Category | Residual-current device |
Manufacturer no. | 402074 |
Release date | 16.11.2022 |
Colour | White |
Exact colour description | White |
Circuit breaker type | Fault current circuit breaker |
Mounting type | Top-hat rail |
Mounting type | Engagement |
number of poles | 4 |
Tripping characteristic | Sluggish --- |
Rated current | 25 A |
Rated current | 0.03 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | France |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 44 mm |
Width | 44 mm |
Length | 10.20 cm |
Width | 9 cm |
Height | 7.70 cm |
Weight | 336 g |
