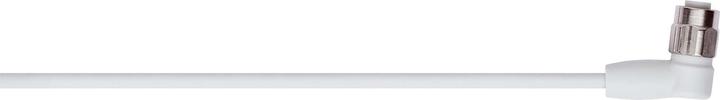

Lapp Sensor-actuator cable

Lapp accessories sensor-actuator cable ABC4-2.0TPE-M12FA-HD

Manufacturer: Lapp
Designation: Sensor-actuator cable M12, 4-pole, 2m
Type: ABC4-2.0TPE-M12FA-HD
Number of poles: 4
Type of electrical connection, field side: M12
Type of plug contact, field side: female
Arrangement of cable feed, field side: angled
Type of electrical connection, housing side: free cable end
Arrangement of cable entry, housing side: other
Cable length: 2 m
Material of cable sheath: other
Halogen-free: yes
Colour of cable sheath: grey
With LED display: no
Shielded: no
Cable type: multi-core
Radiation cross-linked: no
Material of contact base: CuSn
Material of contact coating: Nickel/Gold
Permissible cable outer temperature after assembly without vibration: -40 to 105 °C
Permissible cable outer temperature during assembly/handling: -25 to 105 °C
Rated current: 4 A
Rated voltage: 250 V

Lapp accessories sensor/actuator cable ABC4-2.0TPE-M12FA-HD: more details

Suitable for food and packaging machines, frozen food plants, cold stores, and wet areas with frequent contact with cleaning agents. Features a hygienic design for optimum cleaning results and guaranteed tightness by meeting the highest protection class. Corrosion-resistant due to high-quality stainless steel knurling. Easy detection of contamination due to bright surfaces. Core cross-section: 0.34 mm². Core colours: 4-pole: brown (1), white (2), blue (3), black (4). Outer sheath: TPE halogen-free, grey (similar to RAL 7035). ECOLAB® industry standard in the field of professional cleaning and disinfection in food production. FDA 21 CFR 177.2600 sealing elements especially for the food and beverage industry in North America. Plug/socket M12 to free cable end, 4-pole, drag chain compatible.
