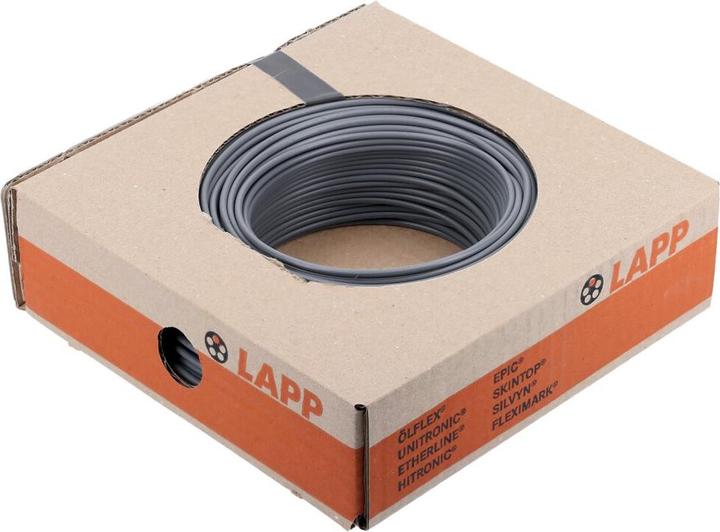

Lapp PVC cable H05V-K 1 x 1mm² 100m grey

100 m
CHF0.35/1m
Ratings
Delivered Wed, 28.5.
More than 10 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

Fine stranded cable sold by the meter is suitable for installation in dry rooms, control systems, and distribution systems, in conduits, as well as in surface-mounted and flush-mounted installations, and in enclosed installation channels. The H05V-K is a PVC-coated wire designed for wiring machines, devices, lights, and control cabinets. The fine wiring consists of bare copper wires according to stranded conductor class 5 per IEC 60228/VDE 0295. This control wire or the copper strands must not be used for direct installation on trays, gutters, and basins. The Lapp cable H05V-K can be used in conduits, both above and below plaster, for signal systems. Application areas for the control cable H05V-K 1x1mm² include internal wiring of devices, protected installation in and on lights, and signal systems above and below plaster in conduits. Product features: flame-retardant according to IEC 60332-1-2, spool dimensions: d1=18mm; d2=200mm; b=85mm. Rated voltage: U0/U: 300/500 V. Temperature range: fixed installation: -40°C to +70°C.

Key specifications

cable type
Installation management
Cable cross section
1 mm²
Voltage
500 V
Cable length
100 m
Exact colour description
Grey
Item number
36979915

General information

Manufacturer
Lapp
Category
Cable conductors
Manufacturer no.
4510063/100
Release date
7.7.2023

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Metal
Material
Copper
Material of the isolation
PVC

Cable properties

cable type
Installation management
Cable cross section
1 mm²
Number of cores
1 x
Nominal voltage U
500 V
Nominal voltage U0
300 V
Nominal current
1 A
Contact material
Copper
Cable Application
Cold appliances

Power supply

Voltage
500 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
100 m
Outside diameter
2.60 mm
