Lapp Cable gland M20 brass

Ratings
BrandMore from Lapp
Currently out of stock
Free shipping starting at 50.–

Product details

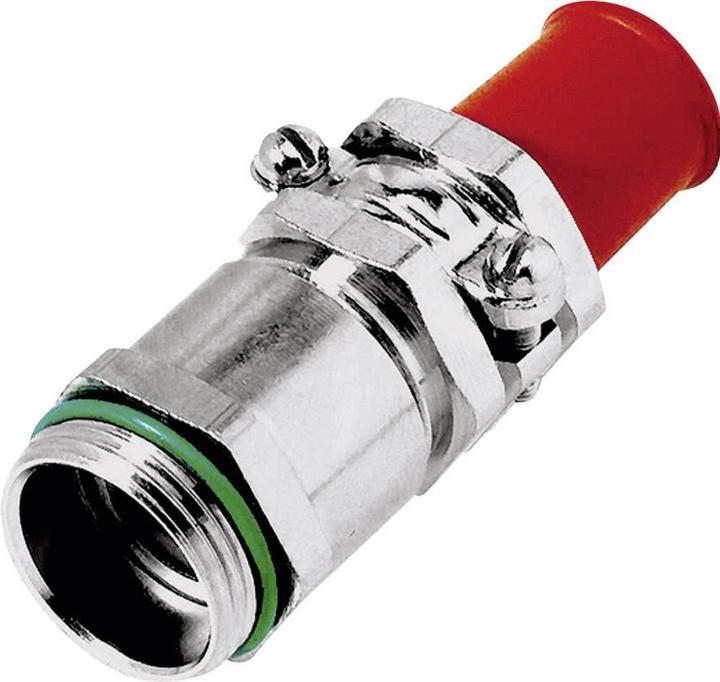

The M20 cable gland made of brass from Lapp Kabel is a reliable solution for securely connecting cables in demanding environments. It is specifically designed for high temperatures and offers excellent resistance to oils, solvents, acids, and chemicals. These properties make it ideal for industrial applications where high robustness and durability are required. The cable gland is seawater-resistant, ensuring safe operation even in marine environments. With a high strain relief, it ensures that cable connections remain stable and are not damaged by mechanical influences. The IP65 protection rating provides additional protection against dust and water, further increasing its range of applications.

  • High temperature resistance from -20 to 165 °C
  • Resistant to oils, solvents, acids, and chemicals
  • Seawater-resistant for marine applications
  • High strain relief for stable cable connections
  • IP65 protection rating for additional protection against dust and water.

Key specifications

Colour
Silver
Cable connection type
Cable gland
Clamps diameter
15 mm
Items per sales unit
10x

General information

Item number
8524794
Manufacturer
Lapp
Category
Cable joints
Manufacturer no.
52105880
Release date
22.4.2018

Colour

Exact colour description
Brass
Colour
Silver

Material

Material
Brass
Material group
Metal

Cable connection Properties

Cable connection type
Cable gland
Clamps diameter
15 mm
Plug type
Flat

Safety

Protection type (IP code)
IP65

Scope of delivery

Items per sales unit
10x

Product dimensions

Length
66.50 mm
Width
66.50 mm
