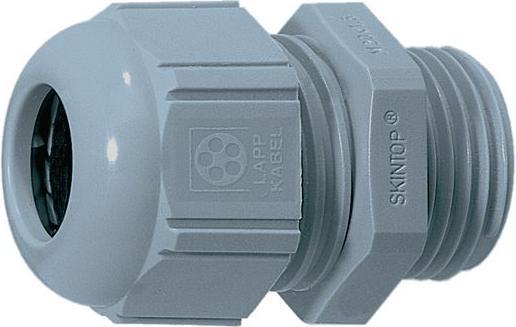

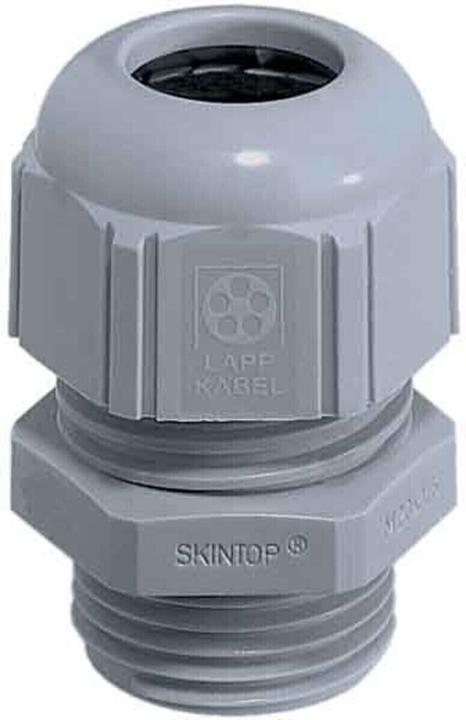

Lapp Cable gland

Lapp accessories cable gland ST-M12x1.5 R7001 SGY

Manufacturer: Lapp Zubehör
Designation: Cable gland SKINTOP
Type: ST-M12x1.5 R7001 SGY
Thread type: Metric
Nominal thread size metric/PG: 12
Thread pitch: 1.5 mm
Thread length: 8 mm
Width across flats: 15 mm
Hexagon square dimension: 17.1 mm
Suitable for cable diameter: 3.5 to 7 mm
Material: Plastic
Material grade: Polyamide (PA)
Surface protection: Untreated
Halogen-free: No
Glass fiber reinforced: No
Protection class (IP): IP68
Impact resistant: No
Color: Gray
Bending protection: No
With locknut: No
Engaging in opening: No
Design: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: No
Type of seal: Sealing ring
Separable gland: No
Operating temperature: -40 to 100 °C
Explosion-proof design: No
For Ex-zone gas: None
For Ex-zone dust: None
For armored cables: No
EMC design: No
Shielded: No

Lapp accessories cable gland ST-M12x1.5 R7001 SGY is ideal for applications where multiple cables and lines need to be fed into a housing in a space-saving manner. It is suitable for machine and apparatus engineering, photovoltaics, automation technology, offshore plants, and shipbuilding. The cable gland features increased oil resistance for higher functional safety, permanent vibration protection, and optimal strain relief. It has large, variable clamping ranges and a metric connection thread according to DIN EN 60423.
