Lapp 53112645

Lapp Accessories MS Cable Gland MS-SC-M-XL 25x1.5

Manufacturer: Lapp Accessories
Designation: MS Cable Gland SKINTOP
Type: MS-SC-M-XL 25x1.5
Thread Type: Metric
Nominal Thread Size Metric/PG: 25
Thread Pitch: 1.5 mm
Thread Length: 12 mm
Width Across Flats: 29 mm
Hex Size: 32.5 mm
Suitable for Cable Diameters: 9 to 16.5 mm
Material: Metal
Material Quality: Other
Surface Protection: Nickel Plated
Halogen Free: No
Glass Fiber Reinforced: No
Protection Class (IP): IP68
Impact Resistant: No
Bend Protection: No
With Lock Nut: No
Design: Straight
Multiple Seal Insert: No
Flat Cable Gland: No
With Strain Relief: No
Type of Seal: Sealing Ring
Separably Connectable: No
Operating Temperature: -30 to 100 °C
Explosion-Proof Design: No
For Ex-Zone Gas: None

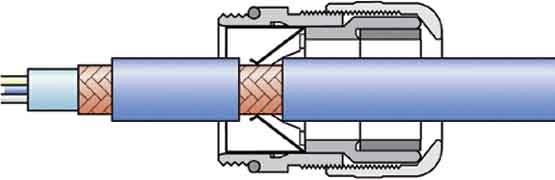

This cable gland is suitable for EMC-compliant grounding of the copper shielding or for cables with copper wave sheathing. It is ideal for telecommunications, mechanical and plant engineering, measurement and control technology, as well as automation technology. It is suitable for cables and conductors with and without internal sheathing and allows for the continuation of the cable shielding to another connection. It provides a low-resistance shield contact and optimal EMC protection with a highly conductive, flexible EMC contact spring for easy installation of different shield diameters. The installation process involves only a few steps and is straightforward. It features a metric connection thread according to DIN EN 60423, which serves as the basis for the technical specifications DIN IEC 62444.
