Lapp 53112015

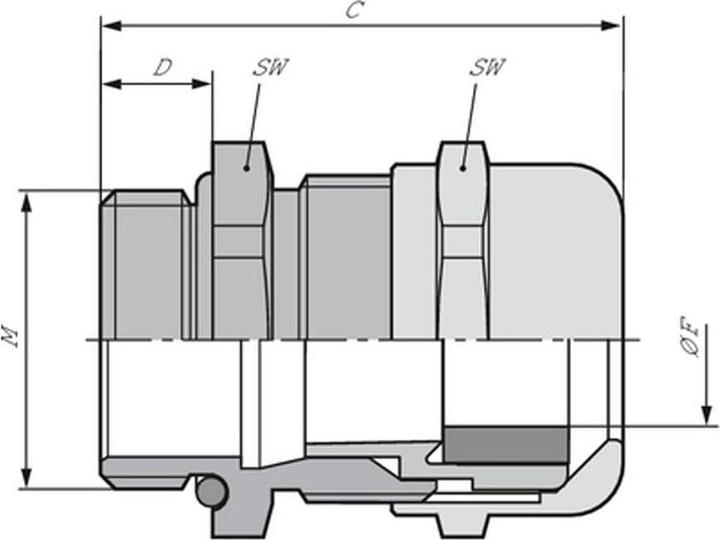

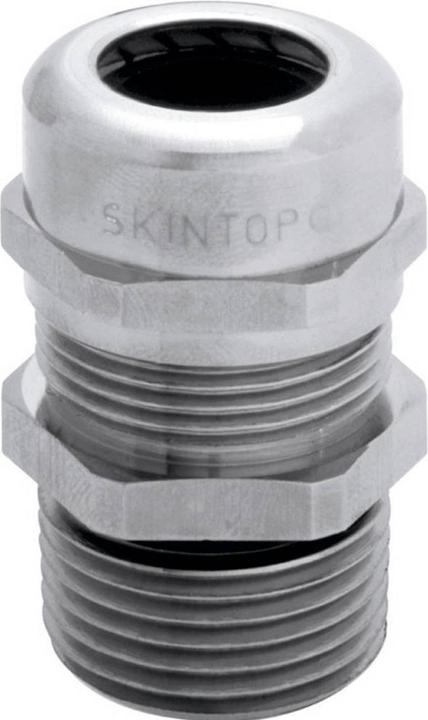

Lapp accessories MS cable gland MS-M-XL 16x1.5 Manufacturer :Lapp accessories Designation :MS cable gland SKINTOP Type :MS-M-XL 16x1.5 Thread type :metric Nominal thread size metric/PG :16 Thread pitch :1.5 mm Thread length :12 mm Width across flats :20 mm Hexagon Square dimension :22.7 mm Suitable for cable diameter :4.5..10 mm Material :metal Material grade :brass Surface protection :nickel-plated Halogen-free :no Glass-fibre reinforced :no Protection class (IP) :IP68 Impact-resistant :no Colour :other Bending protection :no With locknut :no Engaging in opening :no Design :straight Multiple sealing insert :no Flat cable gland :no With strain relief :yes Type of seal :Sealing ring Separable gland :no Application temperature :-30..100 °C Explosion-proof version :no For Ex-zone gas :without For Ex-zone dust :without For armoured cables :no EMC version :no Shielded :no Lapp accessories MS cable gland MS-M-XL 16x1.5: more details With long connection thread for applications with thicker walls. Especially for thicker wall thicknesses, high functional safety, optimum strain relief, large, variable clamping ranges, metric connection thread according to DIN EN 60423, basis for technical specifications DIN IEC 62444, UL File No. E79903 , EAN: 4044773174045.
