Lapp 53015430

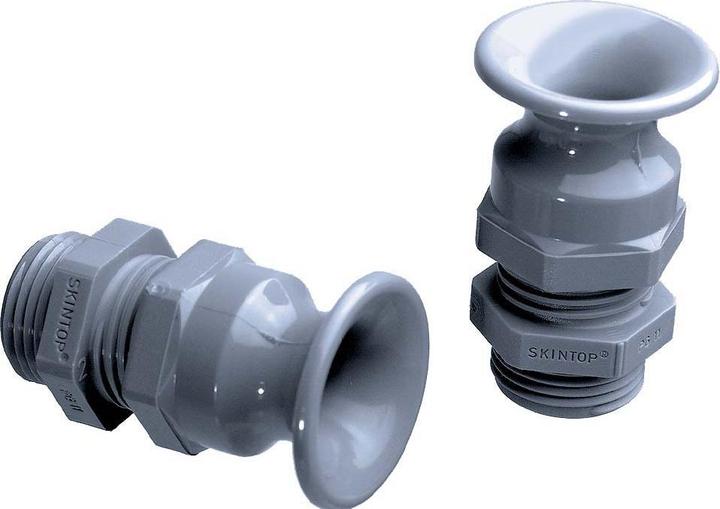

Lapp accessories Cable gland BT Pg13.5 R7001 SGY Manufacturer :Lapp accessories Designation :Cable gland SKINTOP Type :BT Pg13.5 R7001 SGY Thread type :PG Nominal thread size metric/PG :13.5 Thread length :9 mm Width across flats :24 mm Suitable for cable diameter :5...12 mm Material :plastic Material grade :polyamide (PA) Surface protection :untreated Halogen-free :no Glass fibre reinforced :no Protection class (IP) :IP68 Impact resistant :no Colour :grey RAL number :7001 Bending protection :yes With locknut :no Version :straight Multiple sealing insert :no Flat cable gland :no With strain relief :yes Type of seal :Sealing ring Separable gland :no Application temperature :-20..80 °C Explosion-proof version :no Lapp accessories cable gland BT Pg13.5 R7001 SGY: further details On electrical equipment and machines that are moved in normal use, the connected cable must be protected against excessive bending in accordance with VDE 0700-1. Hand-held devices, apparatus engineering, light and sound applications, moving machine parts, reliable protection against bending and kinking, cable protection, function protection, PG connection thread, UL File No. E79903 , EAN: 4044773160529.
