Lapp 10m 1600307 NSGAFÖU 1 x 35 mm² black I Flexible cable with rubber insulation
10 mDelivered between Fri, 23.5. and Wed, 28.5.
Only 4 items in stock at third-party supplier
Only 4 items in stock at third-party supplier
Supplied by
Product details

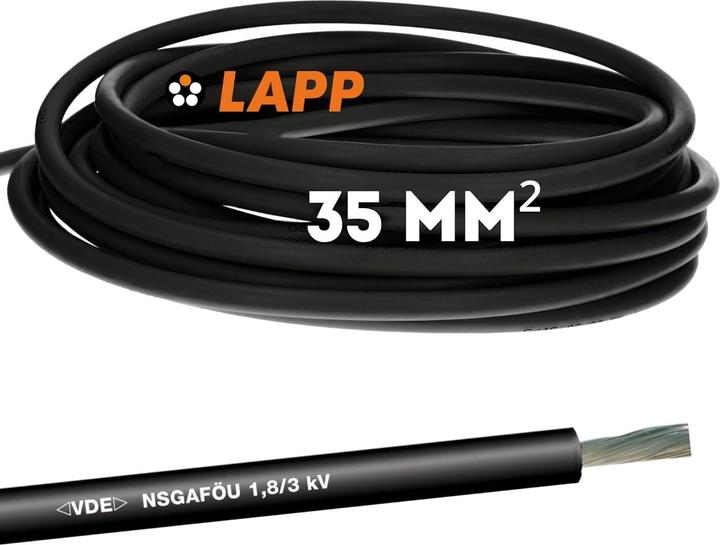

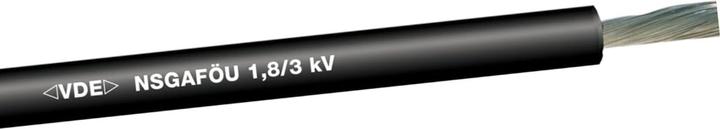

The NSGAFÖU is a high-quality single-core rubber cable with a conductor cross-section of 1x35 mm². This wire meets the highest standards for electrical connections and installations. The black, flexible cable is ideally suited for use as a control cable and wiring cable. Its impressive flexibility not only facilitates installation but also ensures reliability in demanding environments. Thanks to the weather-resistant rubber material, this stranded cable is robust and perfect for use as an outdoor cable. Rely on the proven quality of Lapp Kabel. Our power cable not only symbolizes top performance but also longevity and safety in every connection.
Technical Data:
- Product type: Connection cable
- Rated voltage: U0/U: 1.8 / 3 kV AC rms according to IEC
- Test voltage: 6 kV
- Conductor nominal cross-section: 35 mm²
- Conductor material: Tinned copper
- Conductor construction: IEC 60228 Class 5: fine stranded
- Number of cores: 1
- Max. outer diameter: 7 mm
- Base material of the core insulation: Rubber (latex)
- For torsional stress: no
- Minimum bending radius, permanently installed: 6 x outer diameter
- Minimum bending radius in mm, permanently installed: 99 mm
- Minimum bending radius, occasionally moved: 10 x outer diameter
- Minimum bending radius in mm, occasionally moved: 165 mm
- Temperature, fixed installed: -40 °C to 90 °C.
