Lapp 10 metres 4520006 H07V-K 16.0 mm² green-yellow I Earthing cable I Protective earth conductor 16mm2

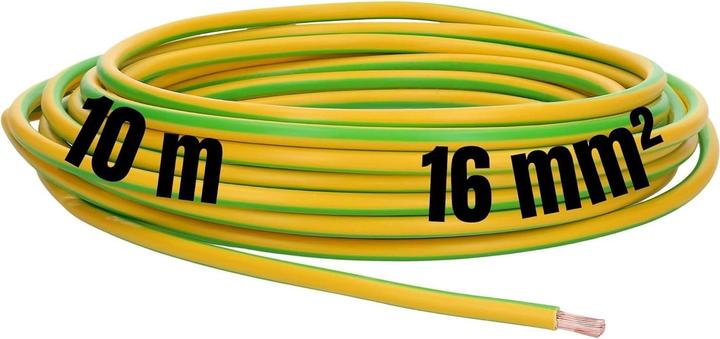

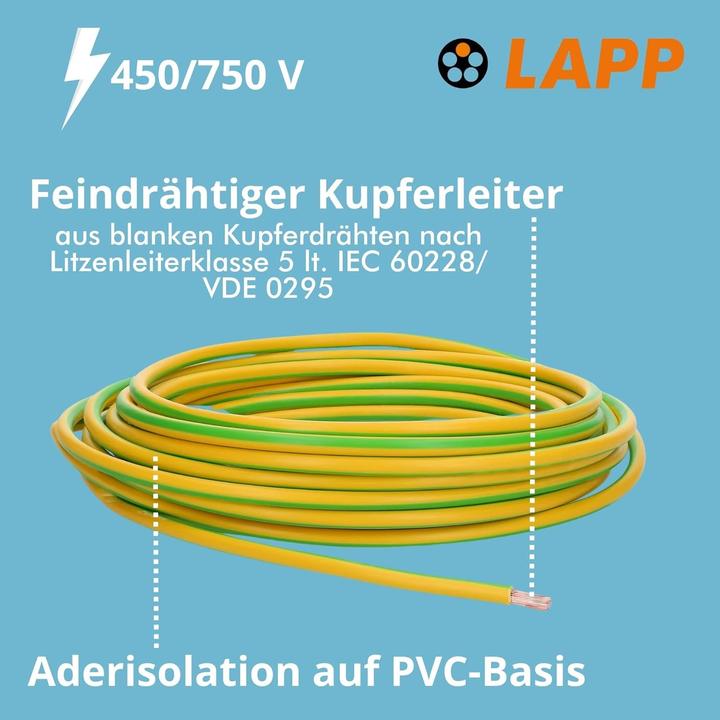

The Lapp Cable H07V-K 1 x 16 mm² is available by the meter, with each piece providing 10 meters of cable (for example, 30 meters if you order 3 pieces). This finely stranded cable is suitable for installation in dry rooms, control systems, and distribution systems, in conduits, as well as in surface-mounted and flush-mounted installations, and in closed installation channels. The fine wiring consists of bare copper wires according to stranded conductor class 5 per IEC 60228/VDE 0295. The H07V-K is a PVC-coated cable designed for wiring machines, devices, lights, and switch cabinets. This control wire or copper strand should not be used for direct installation on trays, ducts, and basins. Harmonized cables are commercial products from LAPP, and depending on availability, the printed label of the audited and certified manufacturing facility may vary. Applications for the H07V-K 16 mm² control cable include installation in conduits above, in, and below plaster, as well as in closed installation channels. For direct installation on trays, ducts, and basins, it should only be used as a protective grounding cable. Product features: Flame-retardant according to IEC 60332-1-2. Reel dimensions: d1=18 mm; d2=200 mm; b=85 mm. Rated voltage: U0/U: 450/750 V. Temperature range: Fixed installation: -40 °C to +70 °C.
