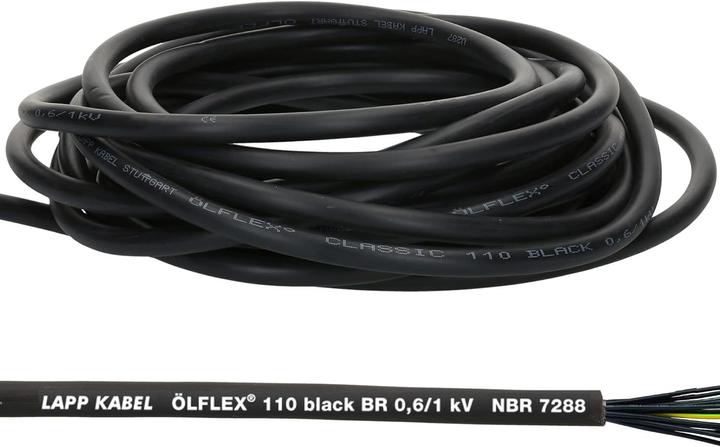

Lapp 10 Meter 1120360 Ölflex Classic 110 Black 0,6/1kV PVC Steuerleitung 4x4 mm² mit Schutzleiter I

UV-resistant cable with black-numbered conductors sold by the meter. You will receive 10 meters of cable per piece (e.g., 30 meters for 3 pieces, etc.). The flexible connection cable 4 x 4.0 mm² is suitable for a variety of applications such as plant construction, mechanical engineering, heating and air conditioning technology, as well as power plant engineering and event technology. Furthermore, it is usable for torsion applications in wind power plants. This cable is suitable for occasional flexible use and for fixed installation with medium mechanical stress. When considering the specified temperature range, the connection cable is also suitable for outdoor use. The 4-core control cable has a PVC protective sheath and fine-stranded conductors made of bare copper wires. The UV cable features black conductors with a numbered identification system. This control cable is flame-retardant, weather-resistant, ozone-resistant, and UV-resistant.

Product features:

• Flame-retardant according to IEC 60332-1-2
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396

Technical data:

• Conductor insulation made of PVC mixture TI2 according to DIN EN 50363-3 or VDE 0207-363-3 with increased requirements according to Lapp specification / fine-stranded according to VDE 0295, Class 5 / IEC 60228 Cl.5
• Conductor identification according to VDE 0293-1
• Nominal voltage U0 / U: 600 / 1000 V
• Test voltage conductor/conductor: 4000 V AC
• Minimum bending radius for occasional movement: 15 x cable diameter / fixed installation: 4 x cable diameter
• Temperature range for occasional movement: -5 °C to +70 °C max. conductor temperature / fixed installation: -40 °C to +80 °C max. conductor temperature
• Torsional capability in wind power plants: TW-0 (5000 cycles at +5 °C) / TW-1 (2000 cycles at -20 °C) ± 150°/m at 1 revolution per minute.
