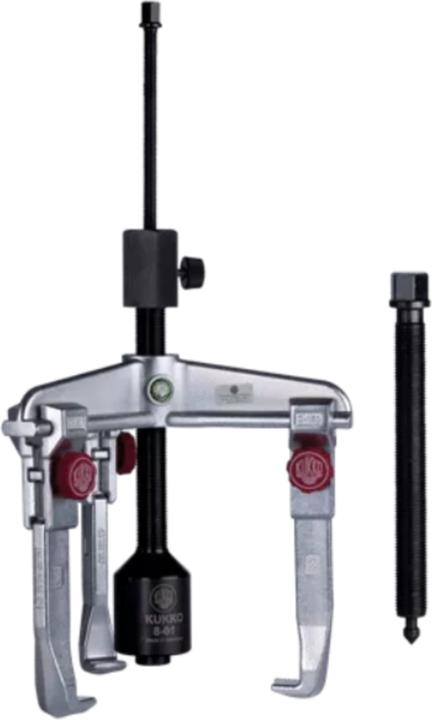

Kukko Puller series 30+B 3-armed O.D.W.200mm Clamping D.150mm hydraulic/mechanical spindle In...

If there is not enough free space around the part to be pulled off, we recommend a 2-arm puller series 20+B. It features grease hydraulics, a standard puller hook with quick adjust, and infinitely adjustable pulling hooks on the crosshead. The hydraulic and mechanical spindle ensures a strong design, high performance, and long service life. The three-arm design guarantees even load distribution for a particularly secure hold on the part to be extracted. The parallel puller hooks can be adjusted in every position, even under full load. The rolled thread is specially coated, and the product is quality made in Germany, with plagiarism protection by a safety label and self-healing corrosion protection KUKKoating on galvanized parts.

Application: This puller is designed for removing particularly tight bearings, gear wheels, discs, and similar components.

Advantage: It allows for easy and controlled removal of tight-fitting parts and can be optionally converted to different puller hooks. The variable clamping depth can be adjusted using extractor hook extensions, which are available up to extractor size -30. The collar of the spindle head prevents slipping of the key, and it can be used as both an external and internal puller by turning the puller hooks. It is also suitable for removing asymmetrical workpieces. All components are available as spare parts, and ordering is time-saving due to numbering. A tube of KUKKO special grease for the pressure spindle is included.

Further technical features:

• Weight: 5.64 kg
• Max. clamping width inside: 260 mm (10 1/4 inch)
• Min. clamping width inside: 100 mm (3 7/8 inch)
• Max. clamping width outside: 200 mm (7 7/8 inch)
• Hexagon socket: 12 mm.
