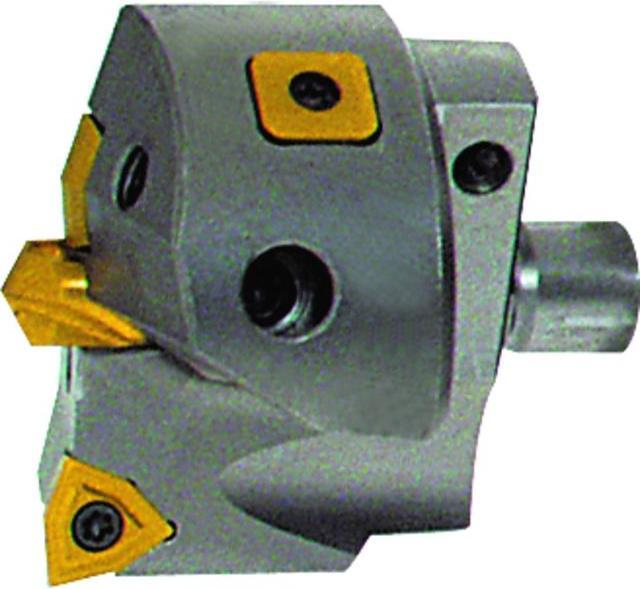

KUB Centron® drill bit

Design: Process-safe up to 8 (9)×D. Centering through centering tip and guide pins. Stiff separation point between the base element and the drill crown. The diameter of the guide pins is matched to indexable cutting inserts with 0.4 mm corner radii. For through holes, the diameter of the guide pins can be adjusted with spacer sheets. Scope of delivery: Drill crown including guide pins (replacement guide pin No. 236658). From a diameter of 65 mm with indexable cutting insert holders (indexable cutting insert holder adjustable +1 mm in diameter). Application: For rotating and stationary use, as well as vertical and horizontal use in all materials. With centering tip No. 236655 − 236657. With indexable cutting insert No. 236740 − 237080.
