Krüger Connecting sleeve

was CHF85.90
Ratings
Delivered between Thu, 25.6. and Fri, 10.7.
free shipping

Suitable for cable cross-section3

Product details

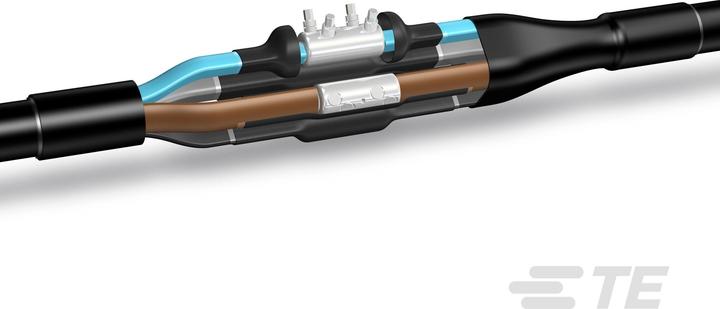

Krüger-Werke GmbH Connection Sleeve LJSM-4X095-240

Manufacturer: Krüger-Werke GmbH
Designation: Connection sleeve 4x95-4x240 mm²
Type: LJSM-4X095-240
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat-shrinkable
Insulating material: Plastic
For connecting paper-insulated cables with plastic-insulated cables: No
Number of conductors: 4
Rated conductor cross-section: 95-240 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Supplied connection accessories: Screw connector with breakaway head
Halogen-free: Yes

Further details: Standard connection sleeve for four-core plastic cables. Designed with screw connectors with breakaway head. Universally applicable for connecting unshielded plastic cables (e.g., N(A)YY, N(A)2XY, N2XH). Suitable for cables without reinforcement with PVC, PE, XLPE, and EPR insulation. Heat-shrinkable, cross-linked polyolefin tube, internally coated with hot glue. Suitable for Al and Cu conductors. Applications include indoor, outdoor, underground, water, installation channels, and pipes. Complies with Raychem specification PPS 3013 and meets the requirements of all major national and international regulations. System tested according to CENELEC EN 50393.

Key specifications

Suitable for cable cross-section
95 mm²
Items per sales unit
1x

General information

Item number
36820813
Manufacturer
Krüger
Category
Cable joints
Manufacturer no.
CY1501-000
Release date
28.6.2023

Material

Material
Polyolefin
Material group
Metal, Plastic

Cable connection Properties

Suitable for cable cross-section
95 mm²

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
Screw connector with tear-off head
Items per sales unit
1x
