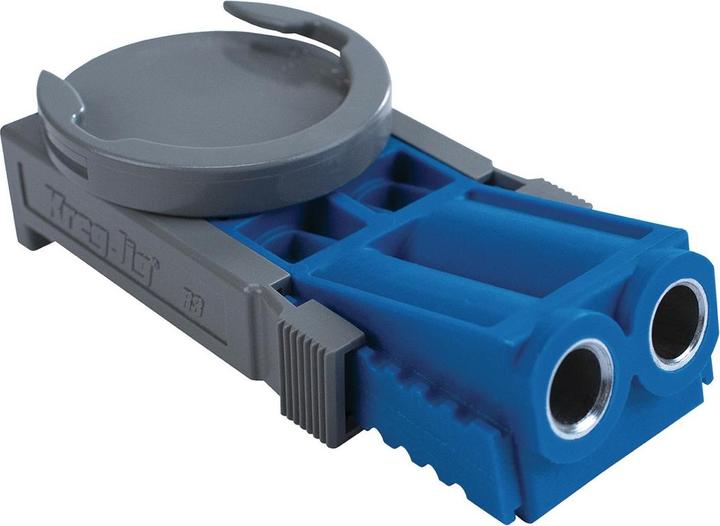

Kreg Jig R3 Starter Set

With this wooden connection system from Kreg Jig, materials can be easily joined together in just three steps. To create these strong connections, set the drilling depth and the position sliders of the template, and choose a screw length that matches the thickness of the workpiece. The Kreg Jig R3 makes it simple in just three easy steps:

Step 1: Set the drilling depth. Slide the stop collar onto the drill bit. Place the pilot tip of the drill bit against the depth stop in the housing and lock the drill bit into the depth gauge so that the stop collar sits in the recess marked for the thickness of the workpiece. Press the drill bit firmly against the depth stop and align the stop collar with the mark that corresponds to the thickness of your workpiece. Secure the stop collar with the hex key provided with the jig.

Step 2: Adjust the position sliders. To adjust the jig so that the screw exits in the center of the workpiece, turn the jig around so that the base is facing up. Press the ribbed bar on each slider with your thumb and slide it until the mark on the slider that corresponds to the thickness of the workpiece aligns with the arrow on the main body of the jig.

Step 3: Select the screw. Use the chart to choose the correct screw length. With the Kreg Jig system, creating high-quality furniture and woodworking projects is easy and convenient for any craftsman.

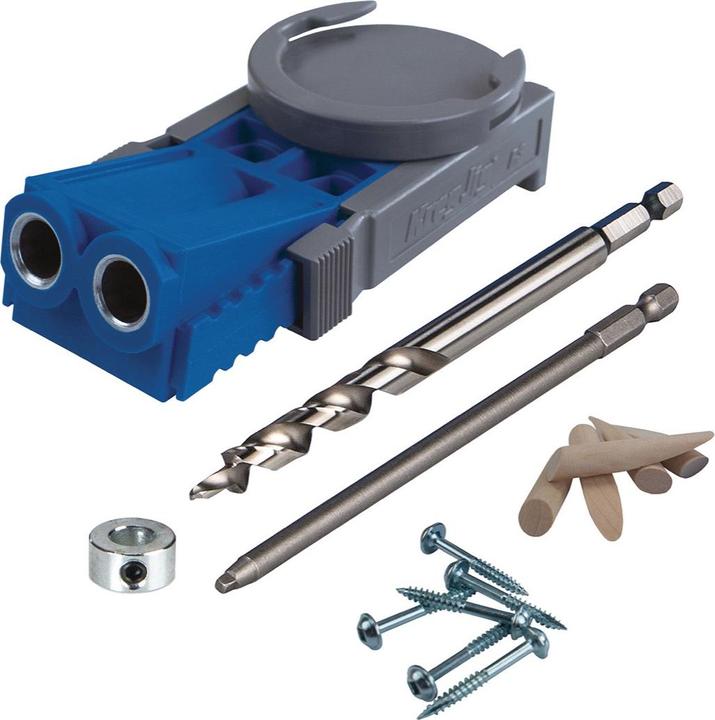

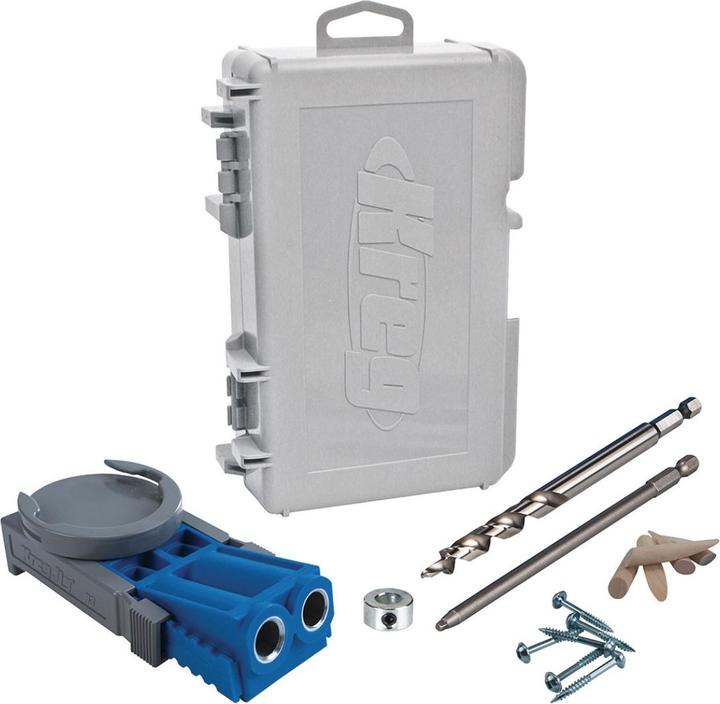

Included: 1x drill bit 152 mm, 1x bit 9 mm, 1x depth stop, 1x hex key, 1x drilling template R3, 5x wooden dowels, 10x screws SML-C250, 10x screws SML-C150, 10x screws SML-F125, 10x screws SML-C125, 10x screws SPS-C1, 1x storage box.
