Knipex NexStrip

190 mm

Product details

12 72 190 Knipex NexStrip Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure. Precise stripping: automatically

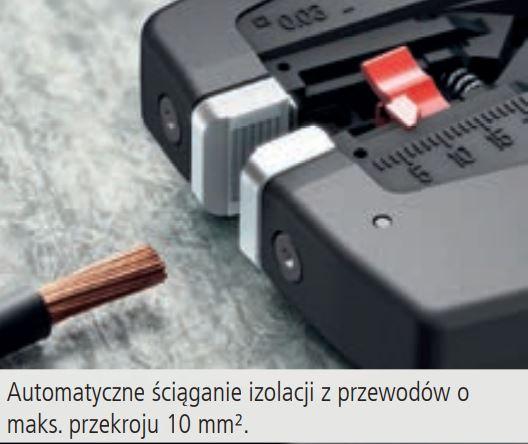

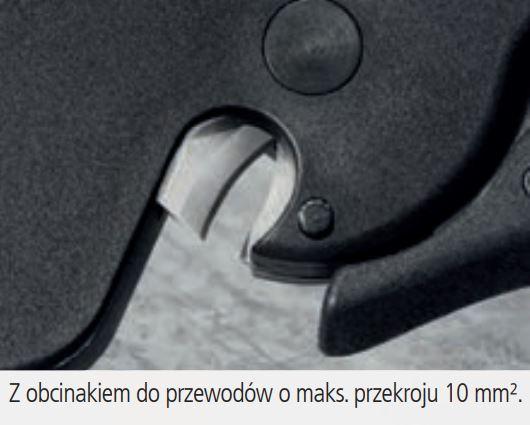

adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work. Multi-component grips ensure non-slip, comfortable handling. "Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 - 4 mm² / 2 x 2.5 mm² - allows for quick crimping between different sizes". Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle. Stripping with fine adjustment - for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8). Cleanly cuts conductors up to 10 mm² (AWG 8). High-quality housing made of glass fibre reinforced plastic. "For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller)". Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².

Key specifications

Material group
Metal
pliers type
Stripping pliers + stripping pliers
Length
190 mm
Weight
170 g
Handle design
Plastic cover
Item number
21984675

General information

Manufacturer
Category
Pliers
Manufacturer no.
12 72 190
Release date
9/7/2022
Sales rank in Category Pliers

Colour

Colour group
Black
Red
Exact colour description
Black
Red

Material

Material group
Metal
Specific material description
Steel

Pliers Features

pliers type
Stripping pliers + stripping pliers
Handle design
Plastic cover

Scope of delivery

Items per sales unit
1 x
Scope of delivery
Crimping pliers

Product dimensions

Length
190 mm
Width
28 mm
Height
120 mm
Weight
170 g

Package dimensions

Length
20.70 cm
Width
12.70 cm
Height
3 cm
Weight
205 g

30-day right of returnReturn policy
24 Months Bring-in WarrantyWarranty provisions
