Product details

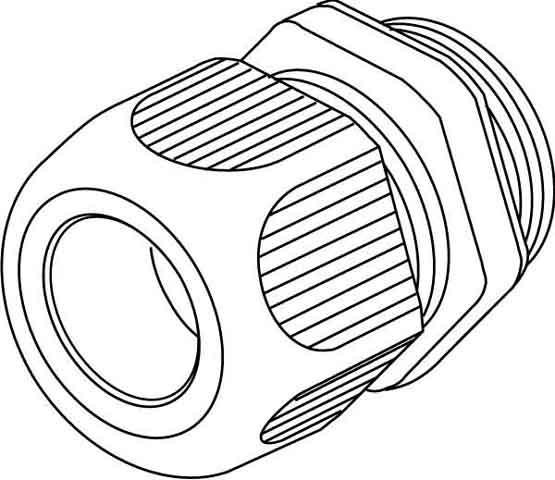

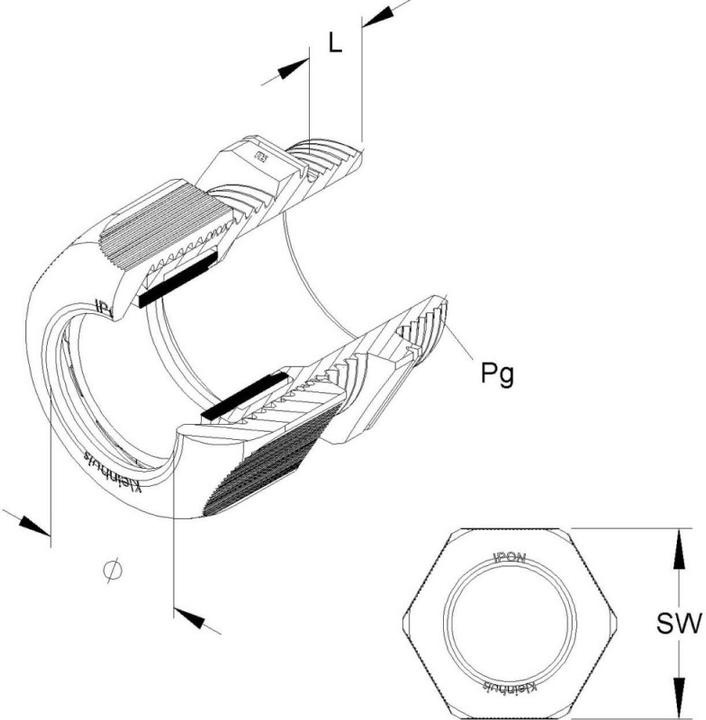

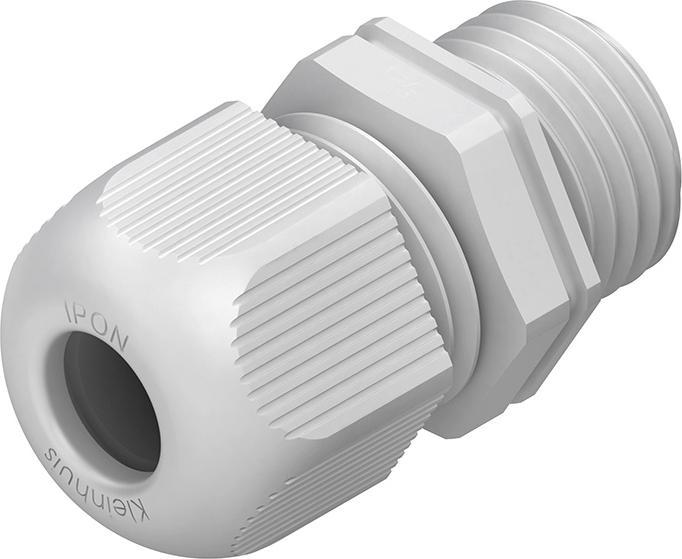

The Kleinhuis cable gland 1234P1603 is a high-quality solution for the safe and reliable connection of cables. It is specifically designed for cable diameters ranging from 10 to 14 mm and offers an IP68 protection rating, meaning it is dust-tight and protected against temporary immersion in water. Made from polyamide (PA), this gland features high temperature resistance, allowing for a temperature range of -30 to 100 °C. The construction is flame-retardant according to UL 94 V-O, providing additional safety in demanding environments. With a PG-standard thread and a thread length of 10 mm, installation is straightforward and efficient. This cable gland is ideal for applications where a robust and durable connection is required.

  • IP68 protection rating for maximum sealing and protection against water and dust
  • Made from flame-retardant polyamide (PA) for enhanced safety
  • Temperature range of -30 to 100 °C for versatile applications
  • PG thread according to DIN 40430 for easy installation
  • Suitable for cable diameters of 10 to 14 mm.

Key specifications

Colour
Black
Cable connection type
Cable gland
Clamps diameter
27 mm
Items per sales unit
50x

General information

Item number
33744618
Manufacturer
Kleinhuis
Category
Cable joints
Manufacturer no.
1234P1603
Release date
17.5.2023

Colour

Exact colour description
RAL 9005
Colour
Black

Material

Material
Polyamide (PA)
Material group
Plastic

Cable connection Properties

Cable connection type
Cable gland
Clamps diameter
27 mm
Plug type
Flat

Safety

Protection type (IP code)
IP68

Scope of delivery

Items per sales unit
50x
