Klauke Tubular cable lug

Ratings
BrandMore from Klauke
Delivered between Sat, 30.5. and Wed, 10.6.
More than 10 pieces in stock at supplier
free shipping

Product details

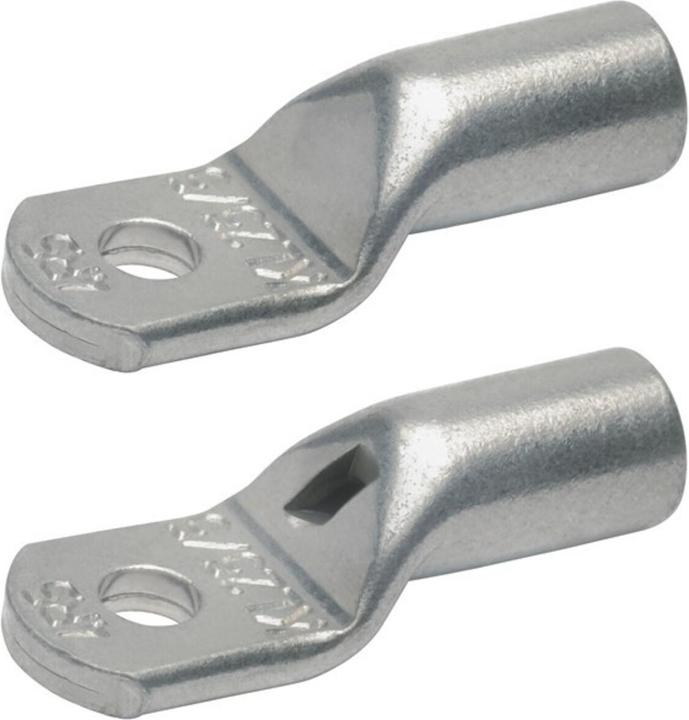

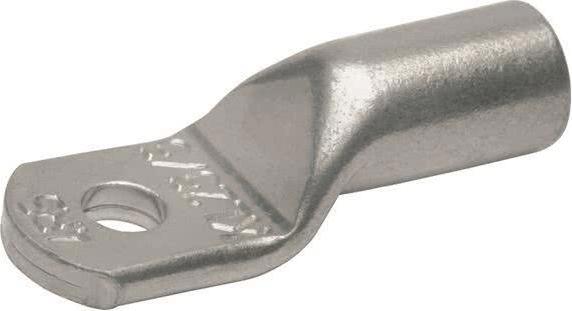

Klauke Tube Cable Lug 13R/12 o.S.

Manufacturer: Klauke
Designation: Tube Cable Lug 300 mm²
Type: 13R/12 o.S.
Thread connection size (metric): 12
Connection angle: 180° (horizontal)
Flange shape: Ring shape
Narrow flange design: No
Insulated: No
With test hole: No
Conductor class: Class 2 (stranded)
Material: Copper
Surface protection: Tin-plated
Number of mounting screw holes: 1
Nominal cross-section: 300 mm²

This cable lug is suitable for stranded round conductors, such as VDE 0295 Class 2, and for round-pressed stranded sector conductors. It is an ideal cable lug for switchgear construction and offers optimal material and crimp properties due to the annealed material. The flat contact surface and precise finishing facilitate cable connection. The item is marked on the cable lug and has been tested for vibrations according to DIN EN 61373 Class 1 B. It is galvanically tin-plated to protect against corrosion. Material Cu according to EN 13600.

Key specifications

Colour
Silver
Cable connection type
Cable lugs
Suitable for cable cross-section
300 mm²

General information

Item number
20019992
Manufacturer
Klauke
Category
Cable joints
Manufacturer No.
13R12
Release date
16.3.2022

Colour

Exact colour description
Stainless steel
Colour
Silver

Material

Material
Copper
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Suitable for cable cross-section
300 mm²
Plug type
Flat

Origin

Country of origin
Slovakia

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Product dimensions

Length
140 mm
Width
90 mm
Height
60 mm
